SF Series Brushless DC Right Angle Gearmotor

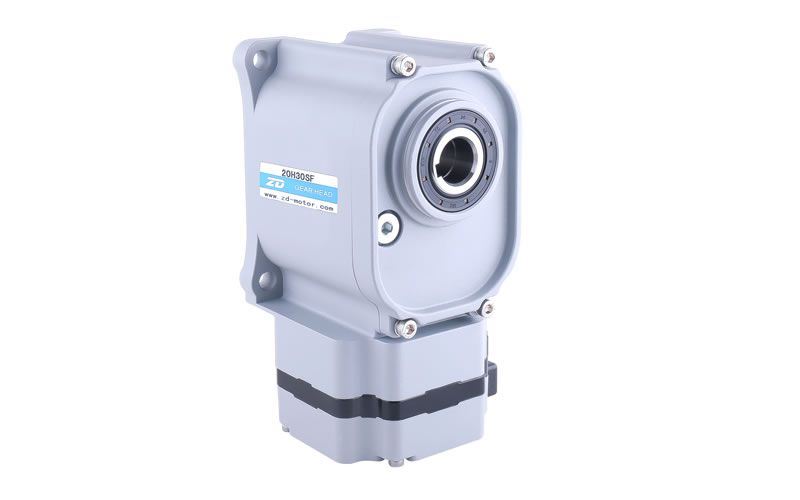

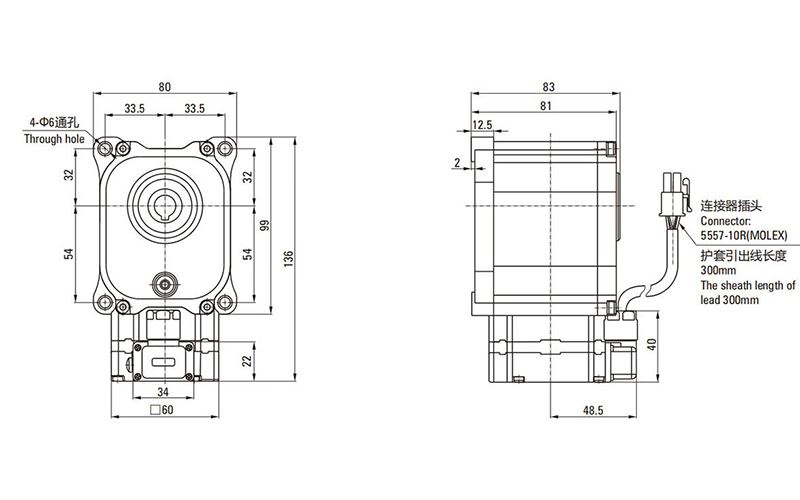

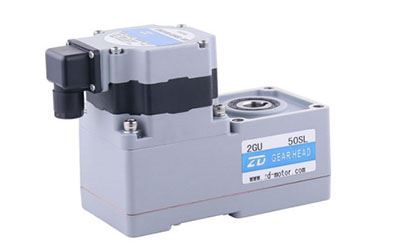

60mm 60W Brushless DC Right Angle Gearmotor
60mm 60W Brushless DC Right Angle Gearmotor 60mm 60W Brushless DC Right Angle Gearmotor
Request a Quote

60mm 60W Brushless DC Right Angle Gearmotor

PDF Download
Right Angle Gearmotor
Unit: N•m
Output Power Motor Speed Gear Ratio
7.5 10 20 30 50
60W 80~2000RPM 0.90 1.8 3.6 5.2 8.6
3000RPM 0.86 1.7 3.4 4.9 8.2
4000RPM 0.65 1.3 2.6 3.7 6.2

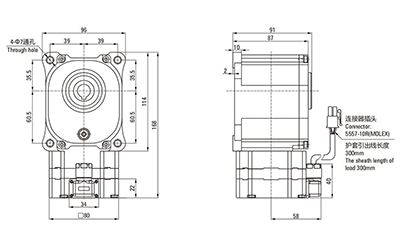

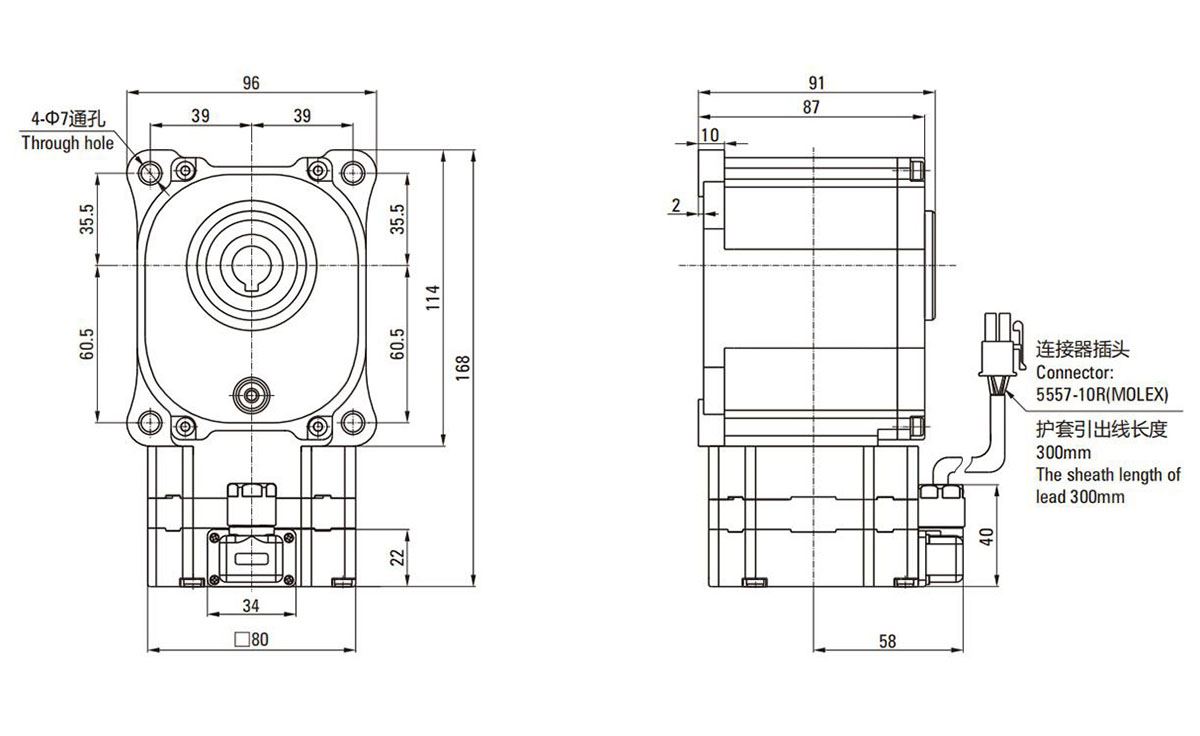

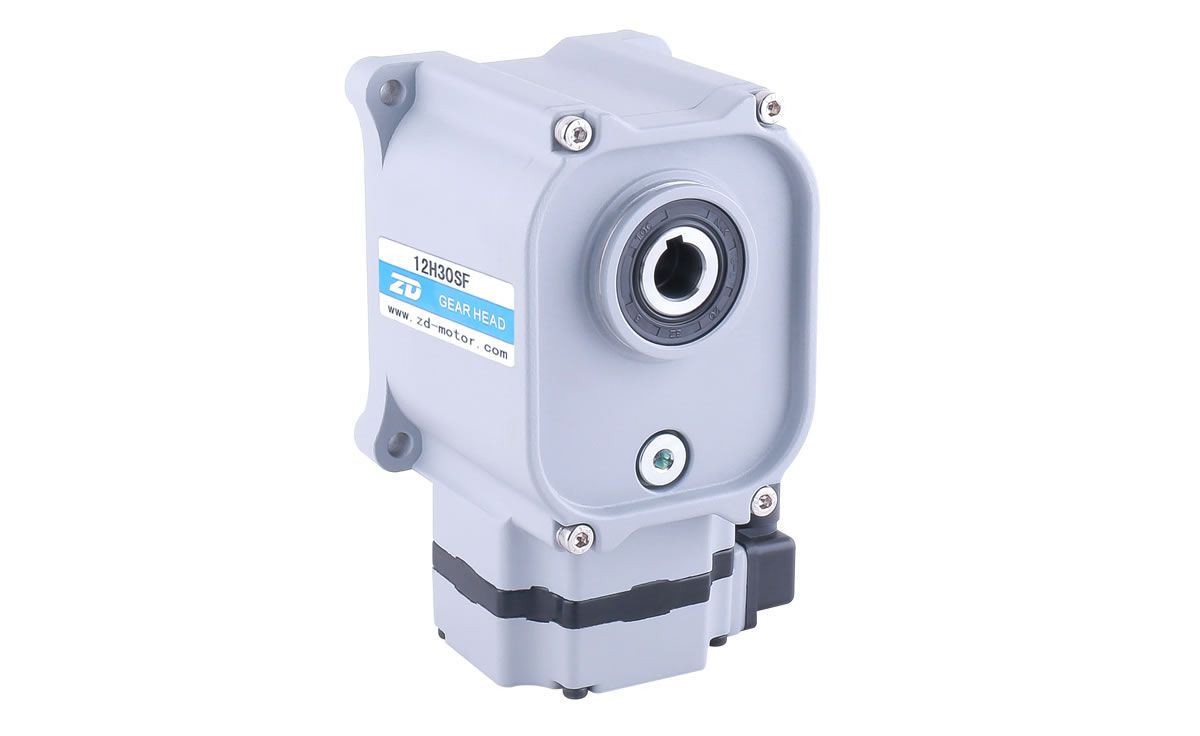

80mm 120W Brushless DC Right Angle Gearmotor
80mm 120W Brushless DC Right Angle Gearmotor 80mm 120W Brushless DC Right Angle Gearmotor
Request a Quote

80mm 120W Brushless DC Right Angle Gearmotor

PDF Download
Right Angle Gearmotor
Unit: N•m
Output Power Motor Speed Gear Ratio
7.5 10 20 30 50
120W 80~2000RPM 2.7 3.6 7.2 10.3 17.2
3000RPM 2.3 3.0 6.1 8.80 14.5
4000RPM 1.7 2.3 4.6 6.60 10.9

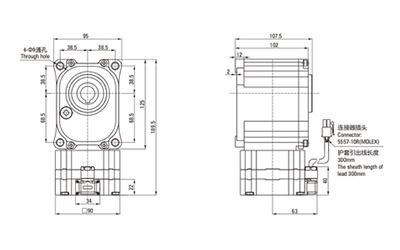

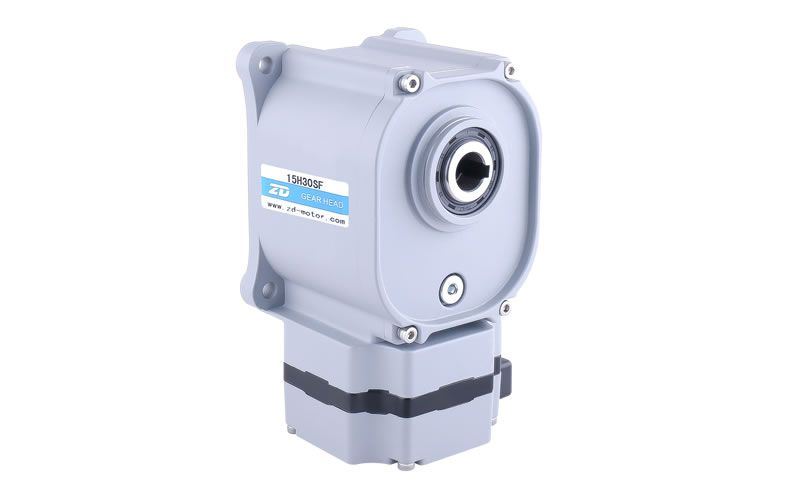

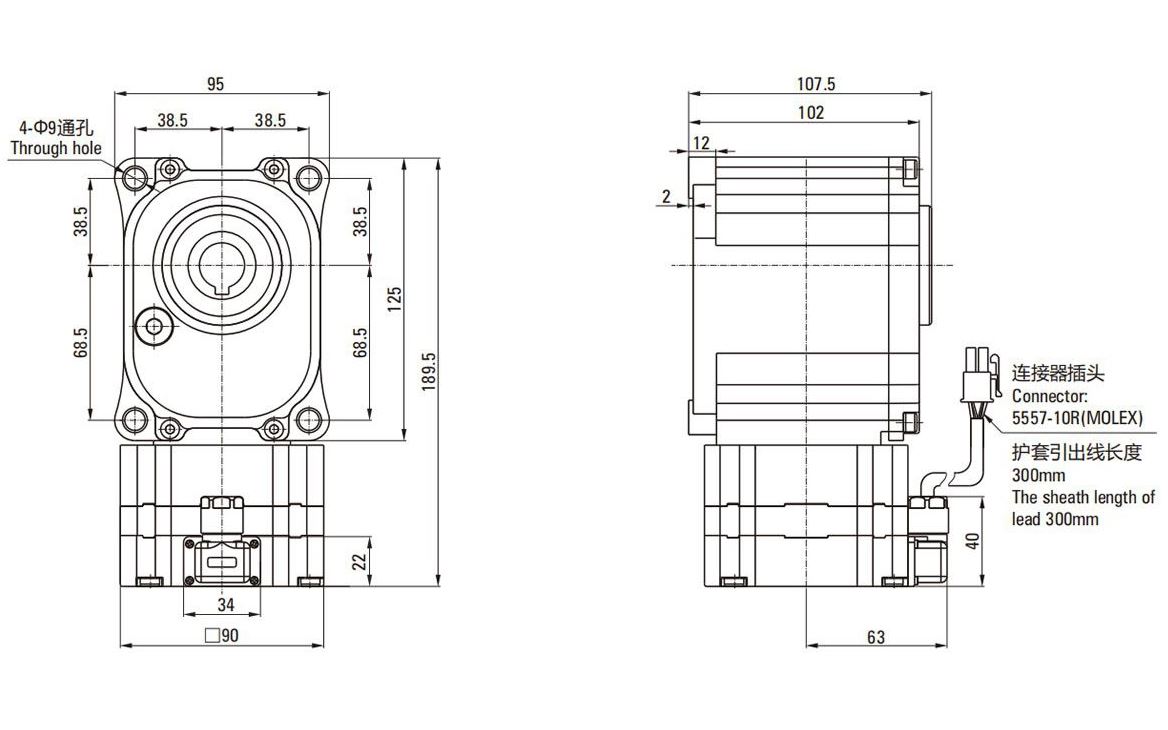

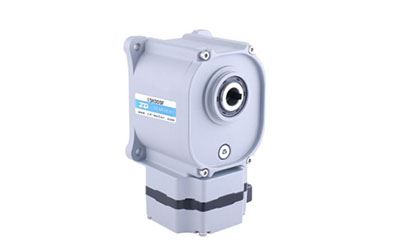

90mm 200W Brushless DC Right Angle Gearmotor
90mm 200W Brushless DC Right Angle Gearmotor 90mm 200W Brushless DC Right Angle Gearmotor
Request a Quote

90mm 200W Brushless DC Right Angle Gearmotor

PDF Download
Right Angle Gearmotor
Unit: N•m
Output Power Motor Speed Gear Ratio
7.5 10 20 30 50
200W 80~2000RPM 3.8 5.0 10.2 14.5 24.3
3000RPM 2.9 3.8 7.60 11.0 18.3

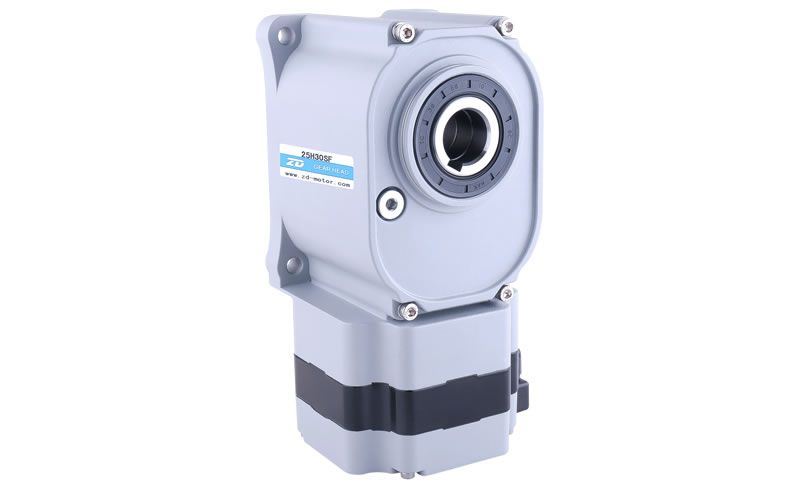

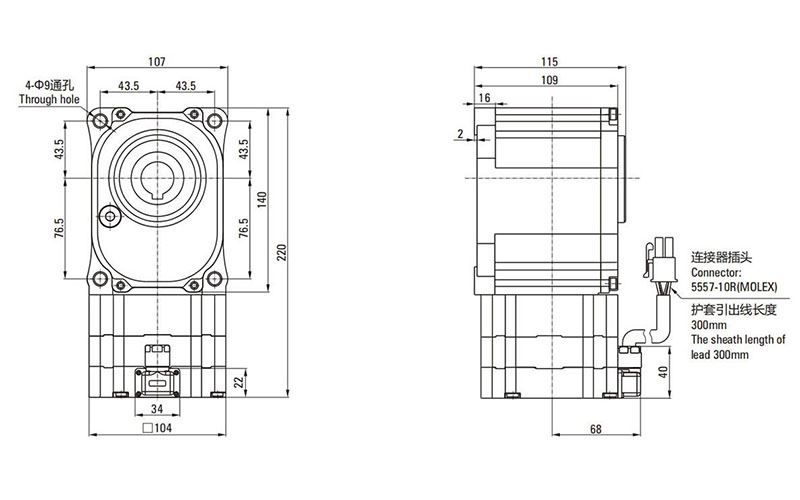

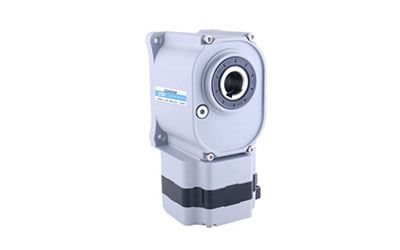

104mm 400W Brushless DC Right Angle Gearmotor
104mm 400W Brushless DC Right Angle Gearmotor 104mm 400W Brushless DC Right Angle Gearmotor
Request a Quote

104mm 400W Brushless DC Right Angle Gearmotor

PDF Download
Right Angle Gearmotor
Unit: N•m
Output Power Motor Speed Gear Ratio
7.5 10 20 30 50
400W 80~2000RPM 7.6 10.1 20.3 29.1 48.5
3000RPM 5.7 7.6 15.2 21.8 36.5
Applications
  • Packaging Industry Food and pharmaceutical packaging machines.
  • Mobility Solutions Stair-climbing transporters, electric wheelchairs.
  • Cleaning Equipment Autonomous sweeping robots, floor scrubbers.
  • Agricultural Logistics Livestock and poultry transport vehicles.
  • Renewable Energy Solar panel rotation mechanisms, photovoltaic cleaning robots.
  • Automation Conveyor systems for photovoltaic panels, automated production lines, custom automation systems.
  • Industrial Tools Rolling presses, lawn mowers.
  • Access Control Channel gates.
Other Products

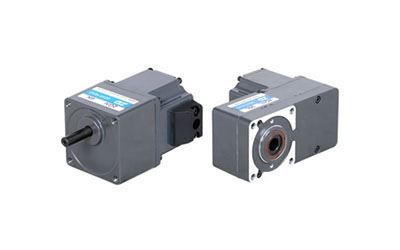

60mm 100W Brushless DC Parallel Shaft Gearmotor 60mm 100W Brushless DC Parallel Shaft Gearmotor
60mm 30W Brushless DC Parallel Shaft Gearmotor 60mm 30W Brushless DC Parallel Shaft Gearmotor

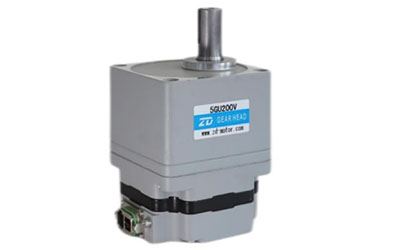

60mm 25W Brushless DC Round Shaft Gearmotor 60mm 25WBrushless DC Round Shaft Gearmotor
