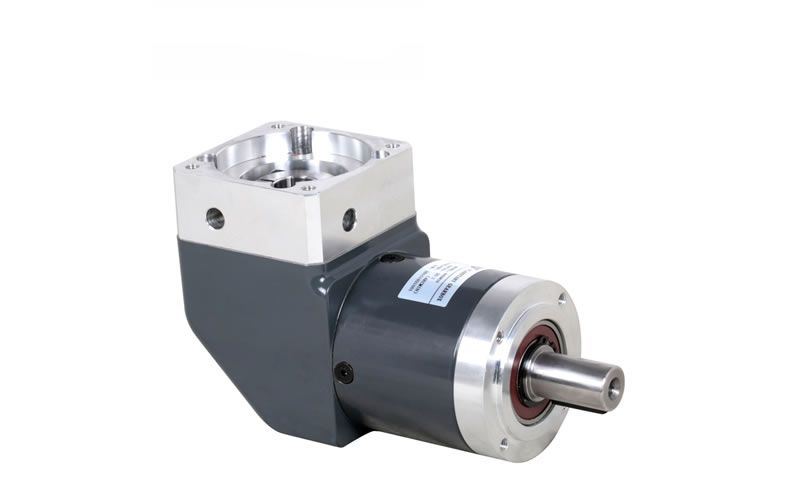

ZDWE Spur Gear Planetary Gearbox

ZDWE Spur Gear Planetary Gearbox

Request a Quote PDF Download

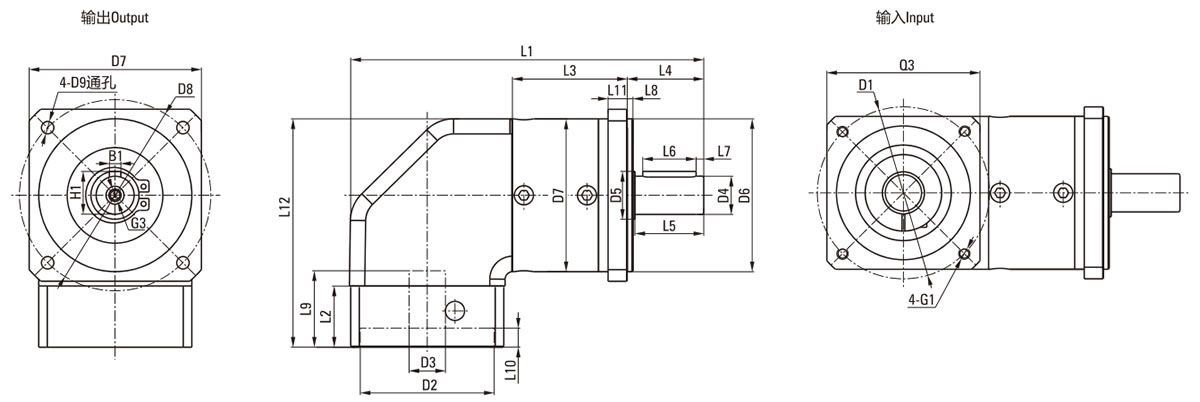

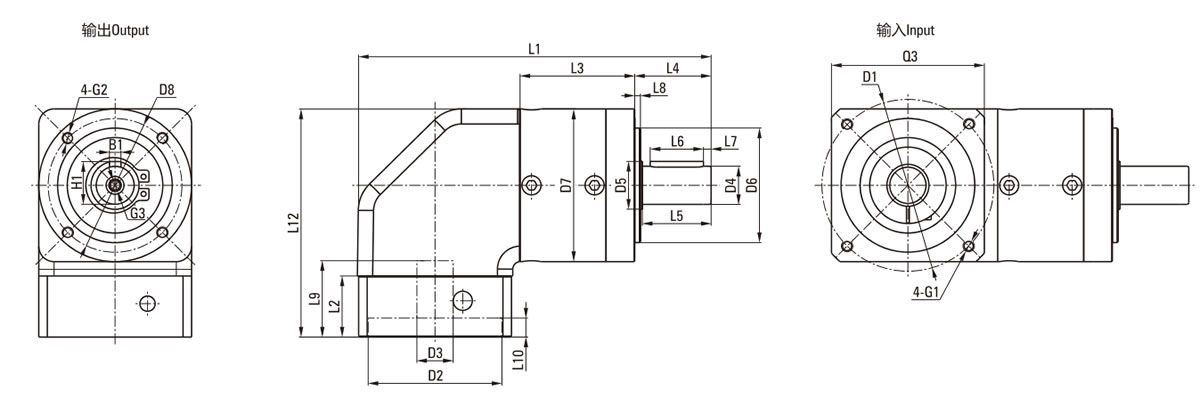

Specifications
Unit: mm
Model 60ZDWE 80ZDWE 120ZDWE 160ZDWE
Number of Stage 1 2 3 1 2 3 1 2 3 1 2
Overall Length L1 150 163 176 184.5 202.5 220 249.2 277 304.5 380 423.5
Body Length L3 46.5 59.5 72.5 60 78 95.5 73.7 101.5 129 141 184.5
Output
Shaft Length from Output L4 35 40 55 87
Shaft Length from Spigot L5 30.5 36 50 80
Key Length L6 25 28 40 70
Distance from Shaft End L7 2.5 4 5 5
Spigot Length L8 3 3 4 5
Input
Motor Flange Length L2 20 32 38 66
Motor Shaft Length L9 30 40 58 81
Motor Location Depth L10 5 10 10 10
Specifications
Specifications
