Power Steering Motor

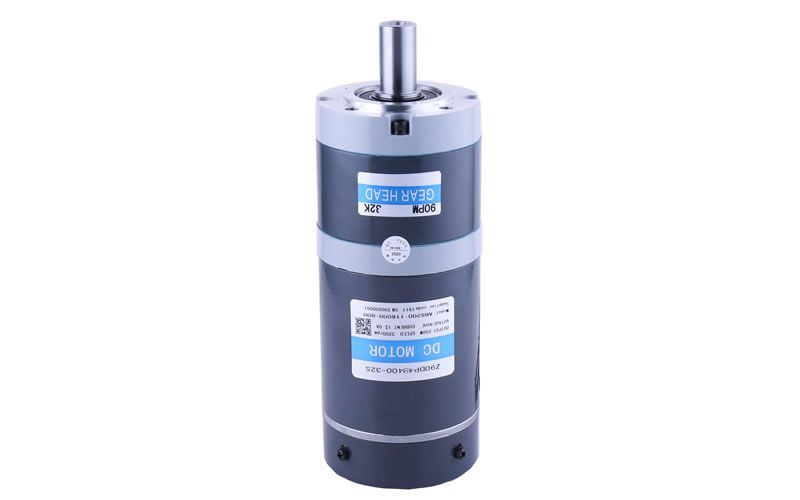

90DP+72PN Power Steering Motor

90DP+72PN Power Steering Motor

Request a Quote PDF Download
Specifications
Model Z100D550-24A1-30S Brush Life 1200h
Rated Voltage 25V DC Electrical Strength 660V/S
Rated Power 550W Insulation Class F
Rated Current 30A±10% Protection Grade IP20
Rated Speed 3000rpm±10% Gearhead Model ZD-ZH180-25-001
Rated Torque 1.75N.m Gear Ratio 25K/17K
No-load Current ≤6A Brake Voltage 24V DC
No-load Speed 3500rpm±10% Brake Torque 6N.m
Work Duty S2(45min) Ambient Temperature -10℃~+40℃
Insulation Resistance >20MΩ Noise < 60
Specifications

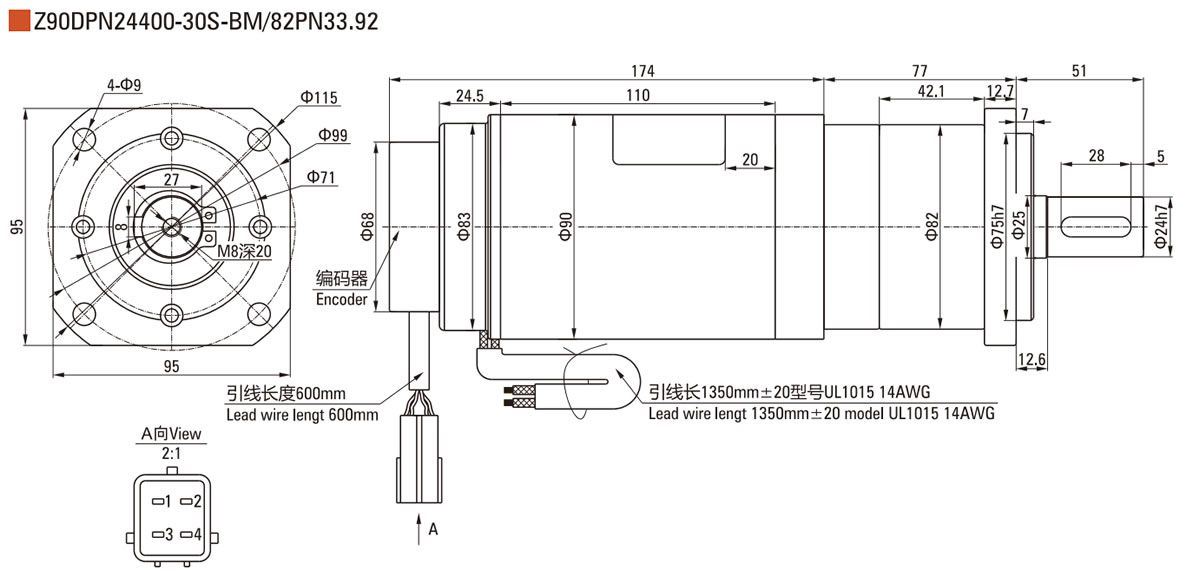

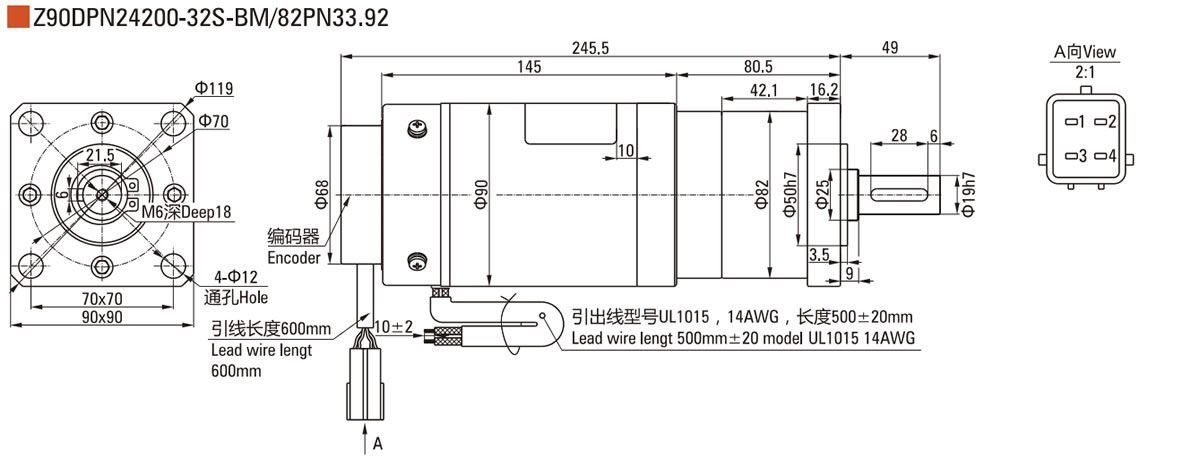

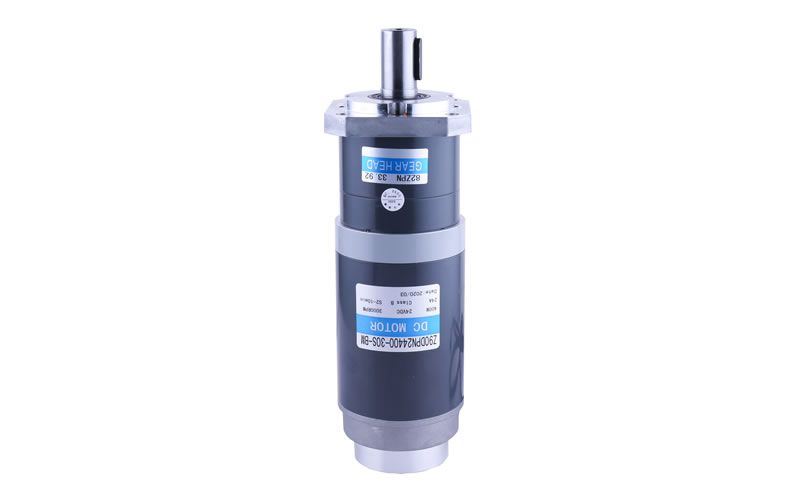

90DP+82PN Power Steering Motor

90DP+82PN Power Steering Motor

Request a Quote PDF Download
Specifications
Model Z90DPN24400-32S-BM Protection Grade IP20
Rated Voltage 24V DC Gearbox Specification 82PN33.92K
Rated Power 200W Reduction Stage 2
Rated Current 24A±10% Output Shaft Rotation Direction of Gearbox and Motor same
Rated Speed 3200rpm±10% Bearing Type Ball Bearings
Rated Torque 1.27N.m Gearbox Structure Integrated
No-load Current ≤3.5A Transmission Efficiency 81%
No-load Speed 3600rpm±10% Rated Output Torque 35N.m
Work Duty S2(10min) Max. Instantaneous Torque 1.5 times the output torque
Insulation Resistance >20MΩ Ambient Temperature -10℃~+40℃
Brush Life 2000h Noise < 60dm (L=100cm)
Electrical Strength 660V/S
Insulation Class B
Specifications
Specifications

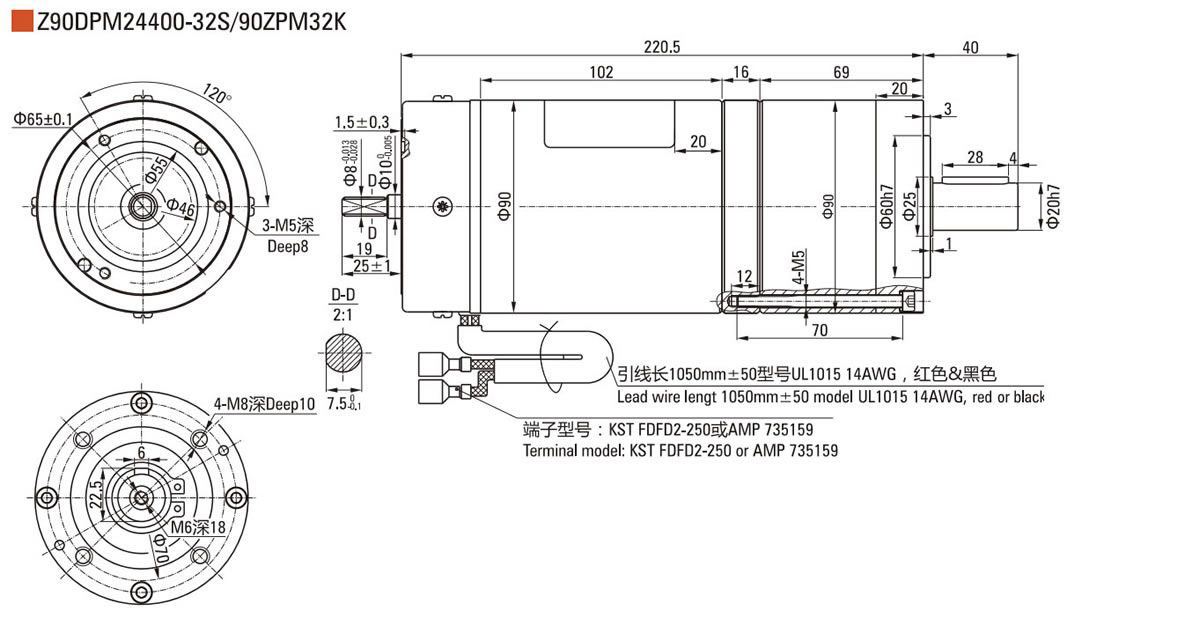

90DP+90PN Power Steering Motor

90DP+90PN Power Steering Motor

Request a Quote PDF Download
Specifications
Model Z90DPN24200-32S Insulation Class B
Rated Voltage 24V DC Protection Grade IP20
Rated Power 200W Gearbox Specification 90PN32K
Rated Current 13A±10% Reduction Stage 2
Rated Speed 3200rpm±10% Output Shaft Rotation Direction of Gearbox and Motor same
Rated Torque 0.597N.m Bearing Type Ball Bearing
No-load Current ≤3.5A Gearbox Structure Integrated
No-load Speed 3600rpm±10% Transmission Efficiency 94%
Work Duty S2(10min) Max. Torque for Gearbox 17.954N.m
Insulation Resistance >20MΩ Max. Instantaneous Torque for Gearbox 2 times the rated output torque
Brush Life 2000h Ambient Temperature -10℃~+40℃
Electrical Strength 660V/S Noise < 60dm (L=100cm)
Insulation Class B
Specifications
Specifications
Other Products

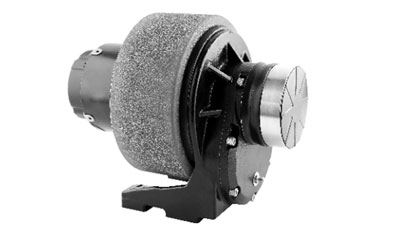

Drive Wheels Drive Wheels
