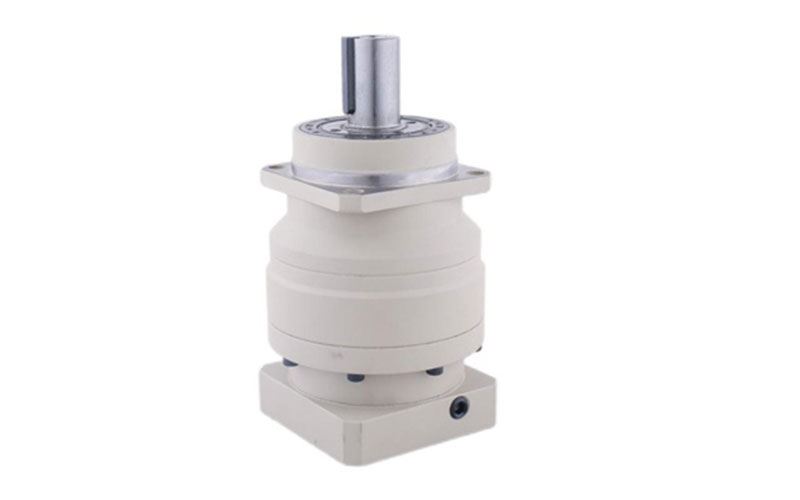

ZRS Helical Gear Planetary Gearbox

ZRS Helical Gear Planetary Gearbox

Application
  • Printing Equipment
  • Laser Cutting Machines
Request a Quote PDF Download
Features
  • The planetary gearbox comes with rigid tapered roller bearings at the output end, allowing for high load capacity.
  • The return clearance is lower than 3 arcmin, which ensures high-precision positioning.
  • Featuring high rigidity, high torque, and low noise.
  • The gearbox can be equipped with servo motor from various brands, enabling it to have a wide range of applications.
Specifications

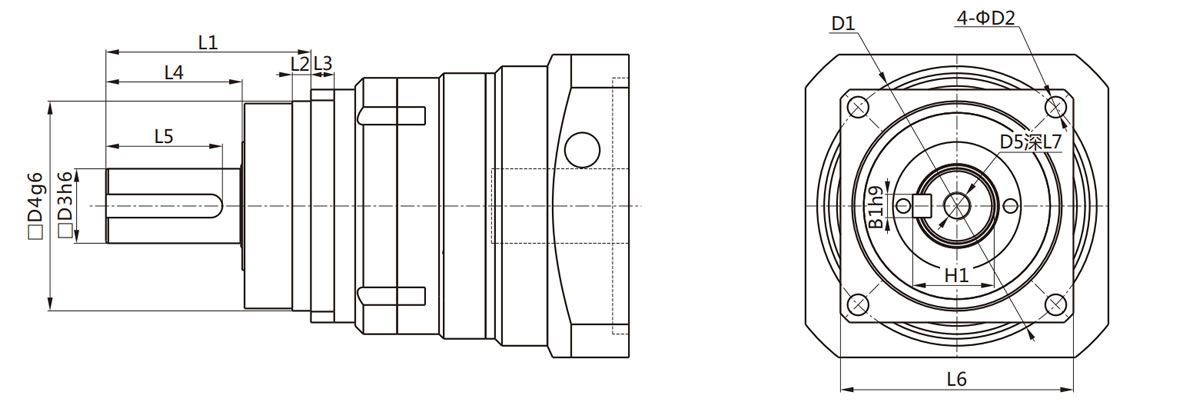

Unit: mm
Specifications Number of Stage Gear Ratio 060ZRS 075ZRS 100ZRS 140ZRS
Rated Output Torque N.m 1 3 55 130 208 342
4 50 140 190 542
5 60 160 330 650
6 55 150 310 600
7 50 140 300 550
8 45 120 260 500
9 40 100 230 450
10 40 100 230 450
2 15 55 130 208 342
20 50 140 290 542
25 60 160 330 650
30 55 150 310 600
35 50 140 300 550
40 45 120 260 500
45 40 100 230 450
50 60 160 330 650
60 55 150 310 600
70 50 140 300 550
80 45 120 260 500
90 40 100 230 450
100 40 100 230 450
Max. Instantaneous Torque N.M 1,2 3~100 3 times the output torque
Max. Radial Force N 1,2 3~100 2800 4900 7000 11000
Max. Axial Force N 1,2 3~100 3500 7500 9000 18000
Return Clearance arcmin 1 3~10 ≤3 ≤3 ≤3 ≤3
2 15~100 ≤5 ≤5 ≤5 ≤5
Max. Output Speed min-1 1,2 3~100 4500 4500 4500 4500
Recommended Input Speed min-1 1,2 3~100 3000 3000 3000 3000
