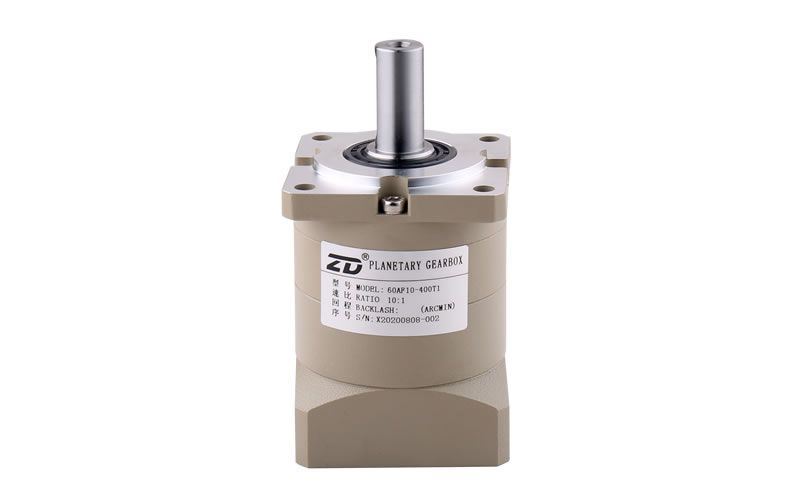

AF Helical Gear Planetary Gearbox

AF Helical Gear Planetary Gearbox

Application
  • Single-piece Separation Equipment
  • Weighing Conveyors
  • Rotary Engraving Machines
Request a Quote PDF Download

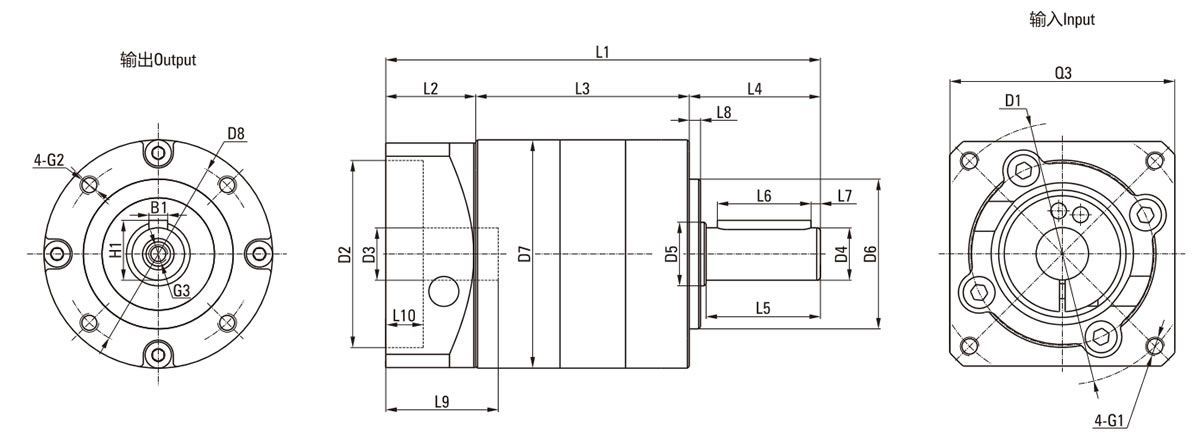

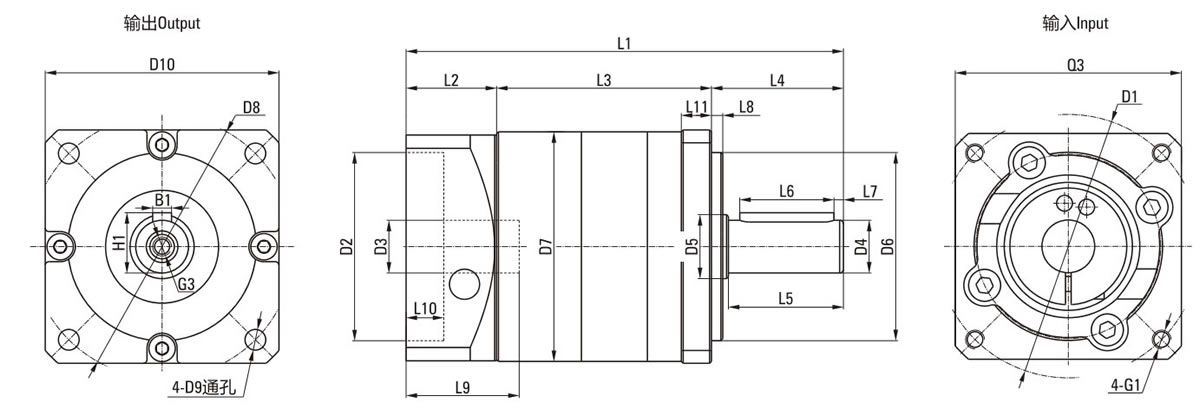

Specifications
Unit: mm
Model 60AF 90AF 120AF 160AF
Number of Stage 1 2 1 2 1 2 1 2
Overall Length L1 116 126 151 165.5 196 207 284.5 323
Body Length L3 57 67 77.3 91.8 93 104 131.5 170
Output
Shaft Length from Output L4 35 40 55 87
Shaft Length from Spigot L5 30.5 36 50 80
Key Length L6 25 28 40 70
Distance from Shaft End L7 2.5 4 5 5
Spigot Length L8 3 3 4 5
Output Flange Thickness L11 8 10 16 15
Output Shaft Diameter D4 φ14h7 φ20h7 φ25h7 φ40H7
Shaft Root Diameter D5 φ20 φ30 φ40 φ45

Spigot Diameter D6

 φ50h7 φ80h7 φ110h7 φ130H7

Body Diameter D7

 φ61 φ90 φ115 φ160
Hole Circle D8 φ70 φ100 φ130 φ185/φ200
Mounting Hole D9 φ5.5 φ6.5 φ8.5 φ11/φ13.5
Hole Circle D10 62 90 115 160/175
Key Width B1 5 6 8 12
Key Height H1 16 22.5 28 43
Center Screw Hole G3 M5X15 M6X18 M10X22 M12X25
Input
Motor Flange Length L2 24 33.7 48 66
Motor Shaft Length L9 30 40 58 79
Motor Location Depth L10 10 10 10 10
Hole Circle D1 φ70 φ90 φ145 φ200

Spigot Diameter D2

 φ50G7 φ70G7 φ110G7 φ114.3G7

Input Shaft Diameter D3

 ≤14G7 ≤19G7 ≤24G7 ≤35G7
Mounting Thread × Depth G1 M4X10 M5X12 M8X21 M12X25
Input Flange Q3 60 80 130 175
Specifications
Specifications
