15W/25W F2/F3 Hypoid Gear Motor

15W/25W F2/F3 Hypoid Gear Motor

Request a Quote PDF Download
Specifications (Continuous Rating)
Model  Output Power  Voltage  Frequency  Rated Current  Rated Torque  Rated Speed  Locked Rotor Torque  Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A
ZDF2-12H-15-S(TB) 15 200 60 0.12 0.09 1550 0.16 0.30 F
220 50 0.13 0.11 1350 0.26 0.35
ZDF2-12H-15-S3(TB)
380 50 0.08 0.11 1350 0.26 0.20
460 60 0.08 0.09 1680 0.30 0.22
Model  Output Power  Voltage  Frequency  Rated Current  Rated Torque  Rated Speed  Locked Rotor Torque  Locked Rotor Current Capacitor  Insulation Grade
W V Hz A N.m r/min N.m A UF
ZDF2-15A-15-C(TB) 15 220 60 0.15 0.09 1680 0.08 0.33 1.20 F
220 50 0.15 0.10 1380 0.08 0.35
ZDF2-15A-15-A(TB)
110 50 0.30 0.10 1380 0.08 0.68 5.00
110 60 0.34 0.09 1680 0.08 0.65

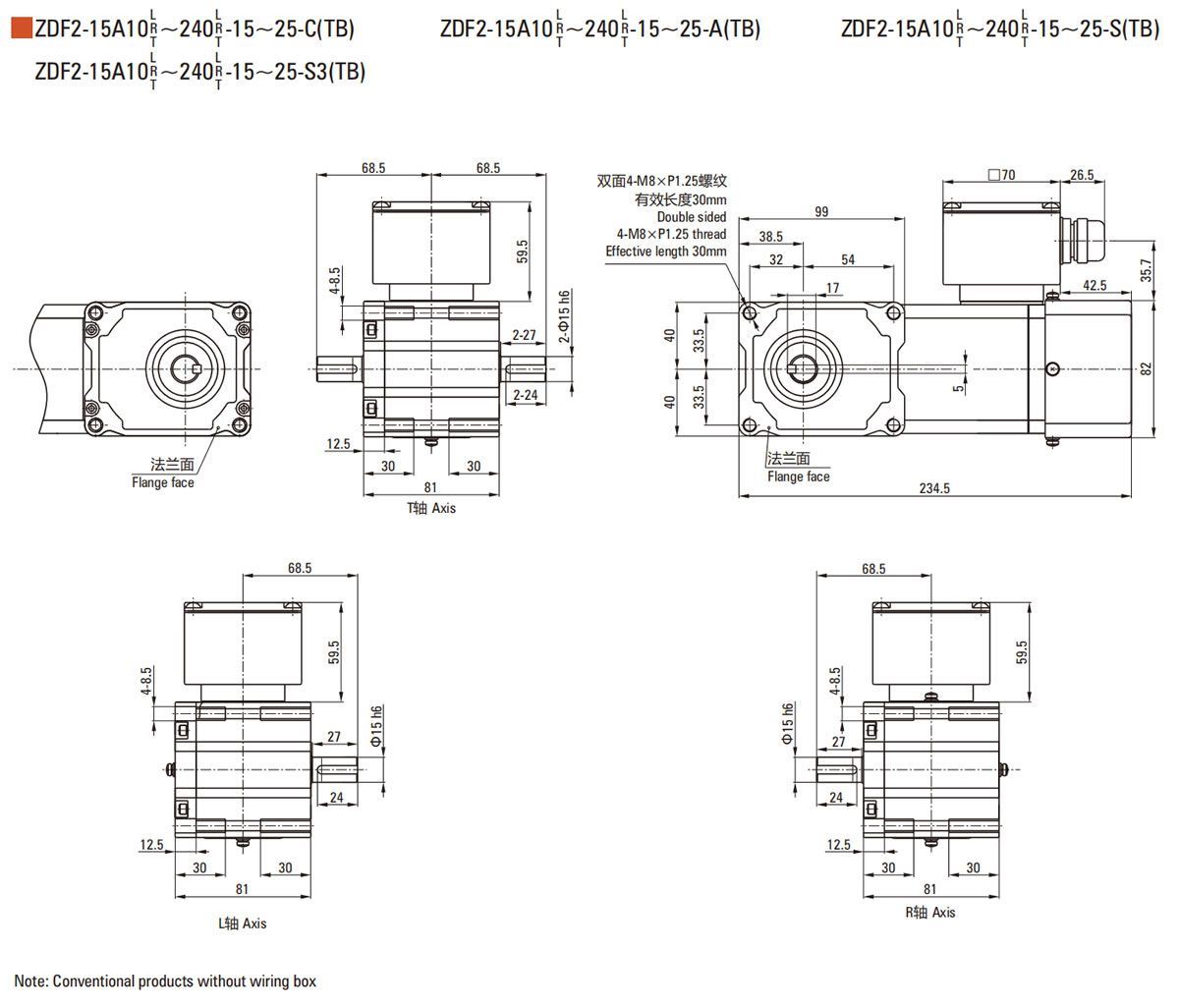

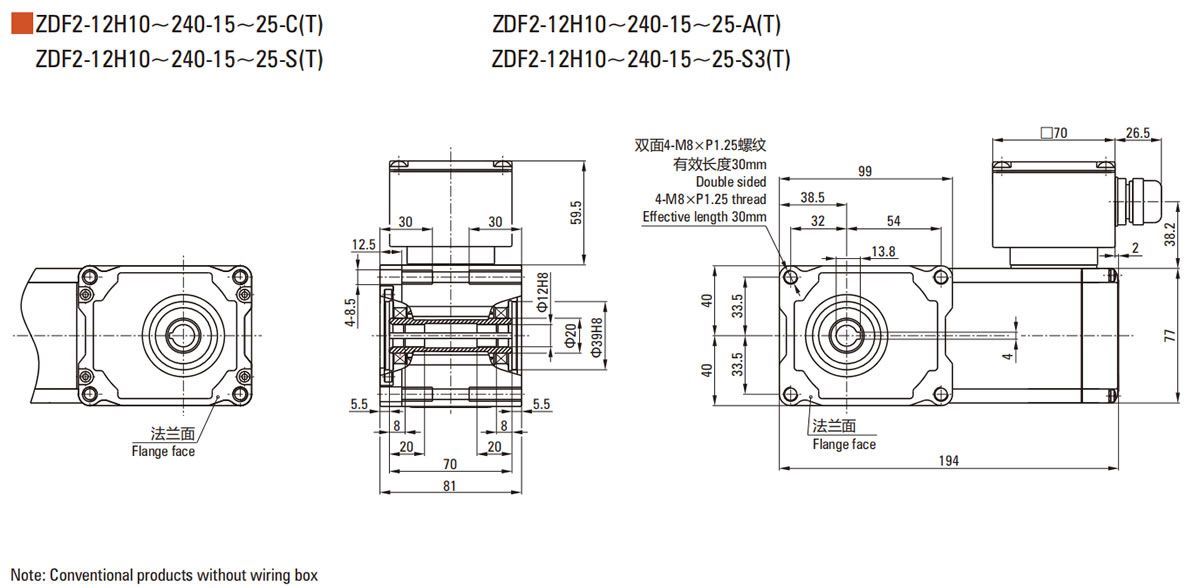

Specifications
Specifications
Applications
  • Positioning Systems Cam dividers for precision automation.
  • Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
  • Food Industry Ice cream makers.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
  • Custom Automation Non-standard automated systems.

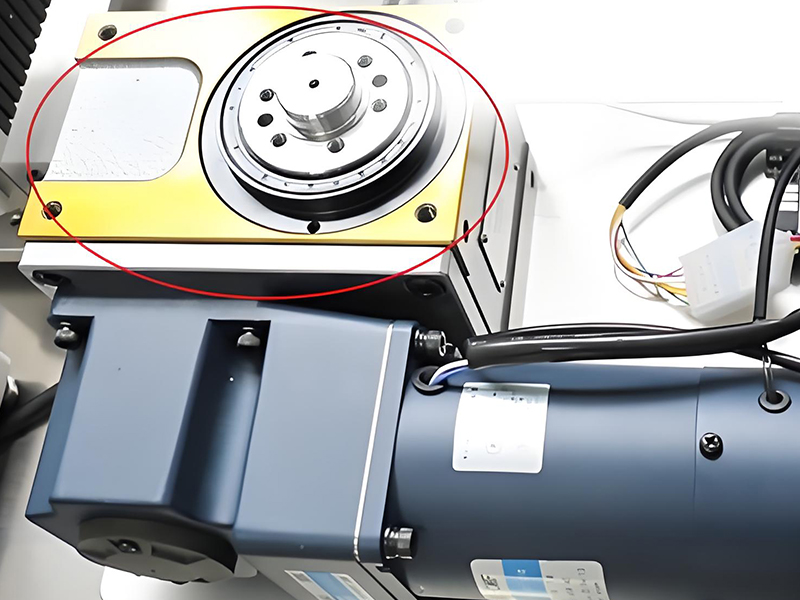

Cam Dividers
Other Products
15W/25W F2/F3 Hypoid Gear Motor 15W/25W F2/F3 Hypoid Gear Motor
40W F2/F3 Hypoid Gear Motor 40W F2/F3 Hypoid Gear Motor
60W/90W F2/F3 Hypoid Gear Motor 60W/90W F2/F3 Hypoid Gear Motor
Manufacturing
Manufacturing
Manufacturing
Manufacturing

The company continually invests in the introduction of internationally advanced production and testing equipment. Zhongda has established a comprehensive manufacturing system, comprising the following components:

Gear Processing Equipment primarily composed of Japan's Mitsubishi and Germany's KAPP.
Housing Processing Equipment mainly from Japan's MAKINO and Mazak.
Motor Processing Equipment featuring Japan's AIDA and NITTOKU.
Product Inspection Equipment including Germany's Zeiss and Klingelnberg.
