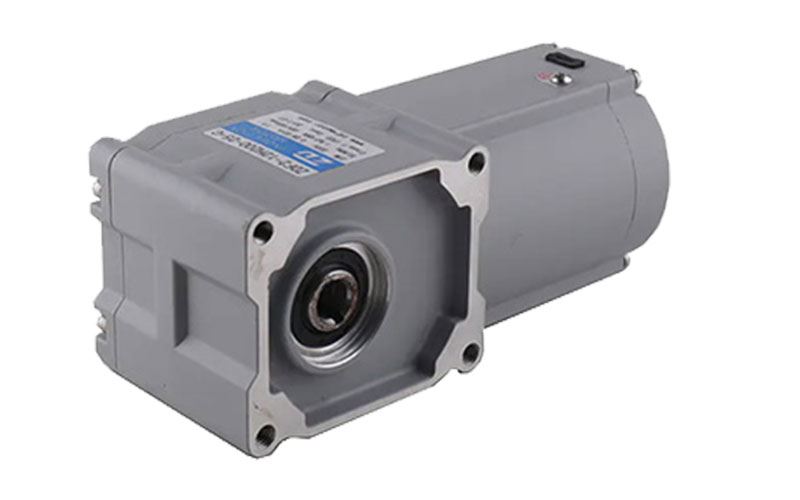

60W/90W F2/F3 Hypoid Gear Motor

60W/90W F2/F3 Hypoid Gear Motor

Request a Quote PDF Download
Specifications (Continuous Rating)
Model  Output Power  Voltage  Frequency  Rated Current  Rated Torque  Rated Speed Locked Rotor Torque  Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A
ZDF2-15H-60-S(FTB) 60 200 60 0.40 0.36 1600 0.90 1.30 F
220 50 0.50 0.44 1350 1.40 1.40
ZDF2-15H-60-S3(FTB)
380 50 0.28 0.44 1350 1.40 0.75
460 60 0.28 0.36 1600 1.50 0.85
Model  Output Power  Voltage  Frequency  Rated Current  Rated Torque  Rated Speed  Locked Rotor Torque  Locked Rotor Current Capacitor  Insulation Grade
W V Hz A N.m r/min N.m A UF
ZDF2-18A-60-C(FTB) 60 220 60 0.47 0.36 1600 0.23 0.95 3.00 F
220 50 0.49 0.44 1300 0.23 1.10
ZDF2-18A-60-A(FTB)
110 50 1.00 0.44 1300 0.23 2.10 12.0
110 60 0.90 0.36 1600 0.23 1.95
Power Bore/Shaft Diameter  Gear Ratio  Output Shaft Speed  Allowance Torque on Output Shaft Allowable Radial Load on Output Shaft
r/min N.m kgf.m Allowable Axial Load on Output Shaft
W mm i 50Hz 50Hz 50Hz N kgf N kgf
60 15/18 10 150 3.560 0.36 343 35 108 11
15 100 5.340 0.54 441 45 147 15
20 75.0 7.120 0.72 539 55 186 19
25 60.0 8.910 0.90 588 60 226 23
30 50.0 10.69 1.09 686 70 245 25
40 37.5 14.25 1.45 784 80 275 28
50 30.0 17.82 1.81 882 90 294 30
60 25.0 21.38 2.18 882 90 294 30
80 18.8 25.66 2.61 1270 130 324 33
100 15.0 32.07 3.27 1270 130 324 33
120 12.5 38.49 3.92 1370 140 343 35
160 9.40 51.32 5.23 1370 140 343 35
※200 7.50 53.90 5.50 1370 140 343 35
※240 6.30 53.90 5.50 1370 140 343 35

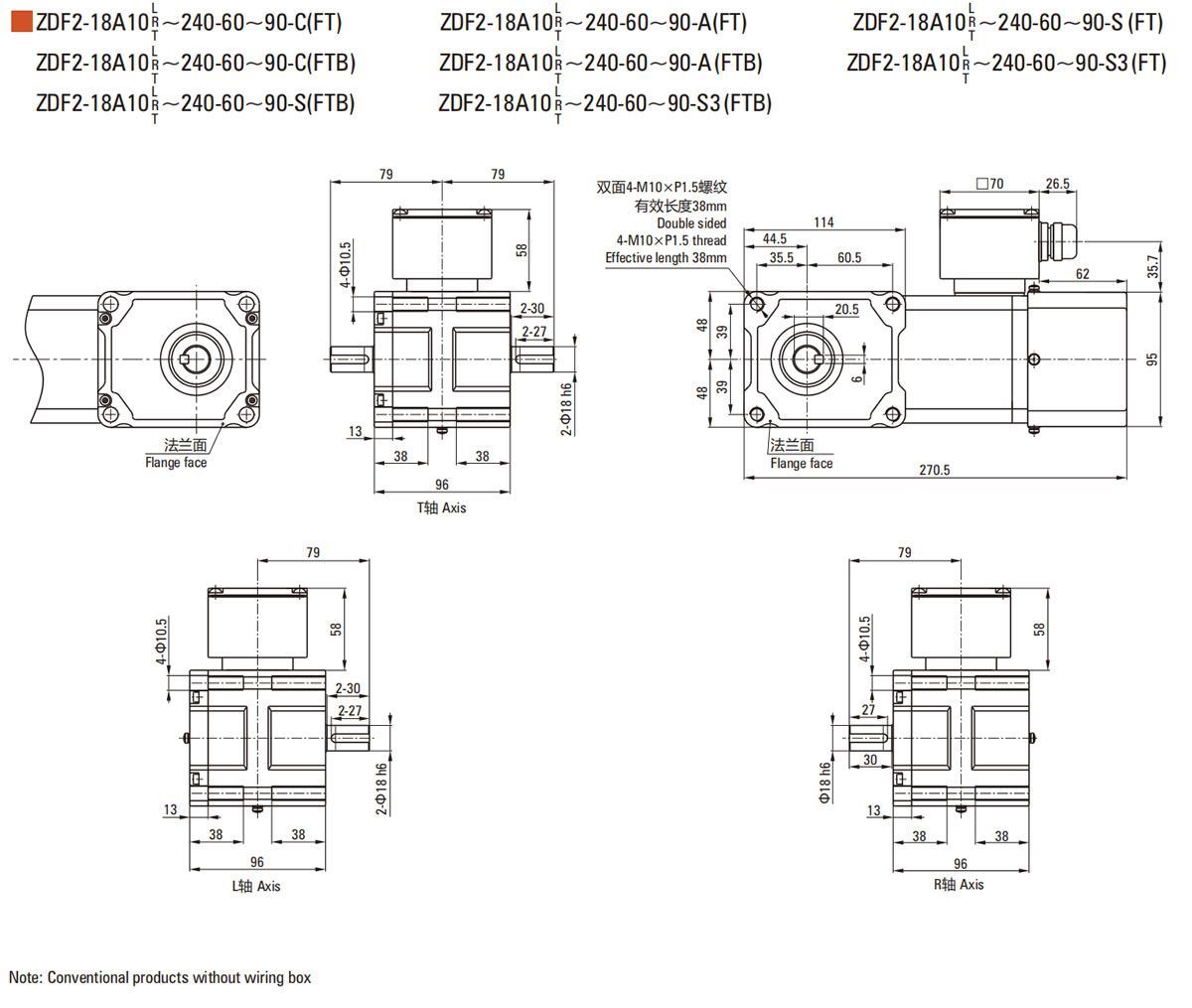

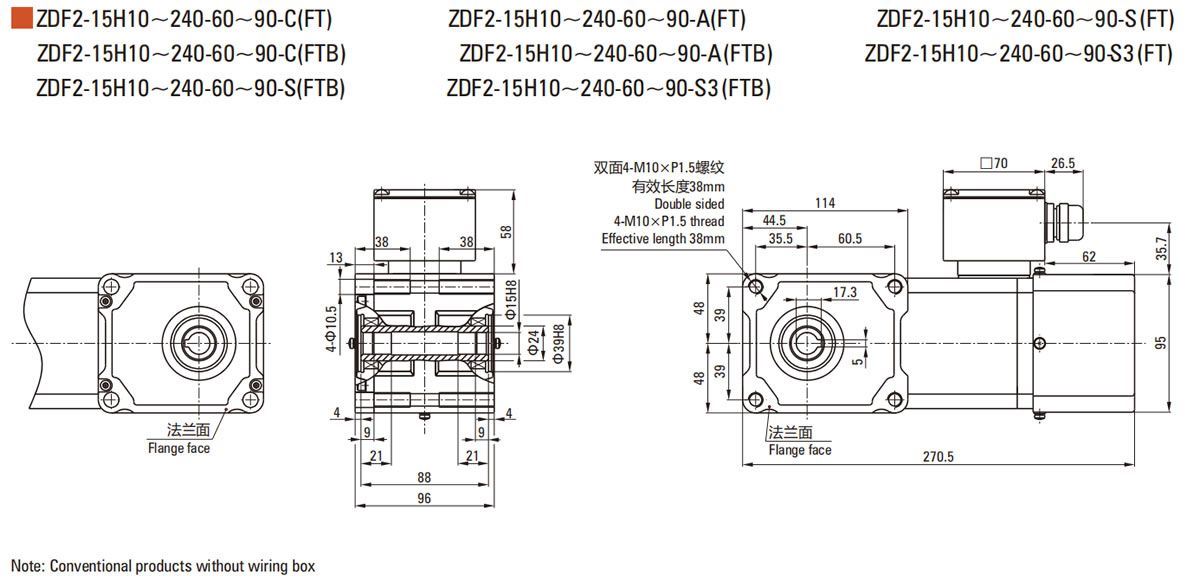

Specifications
Specifications
Applications
  • Positioning Systems Cam dividers for precision automation.
  • Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
  • Food Industry Ice cream makers.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
  • Custom Automation Non-standard automated systems.
