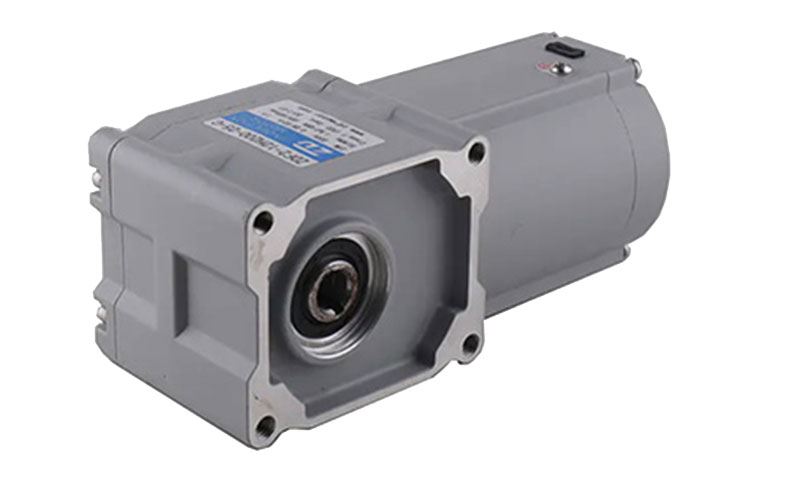

40W F2/F3 Hypoid Gear Motor

40W F2/F3 Hypoid Gear Motor

Request a Quote PDF Download
  • Specifications
  • Applications
Specifications (Continuous Rating)
Model  Output Power  Voltage  Frequency  Rated Current  Rated Torque  Rated Speed  Locked Rotor Torque  Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A
ZDF2-15H-40-S(TB) 40 200 60 0.27 0.25 1500 0.62 0.76 F
220 50 0.29 0.29 1320 0.90 0.90

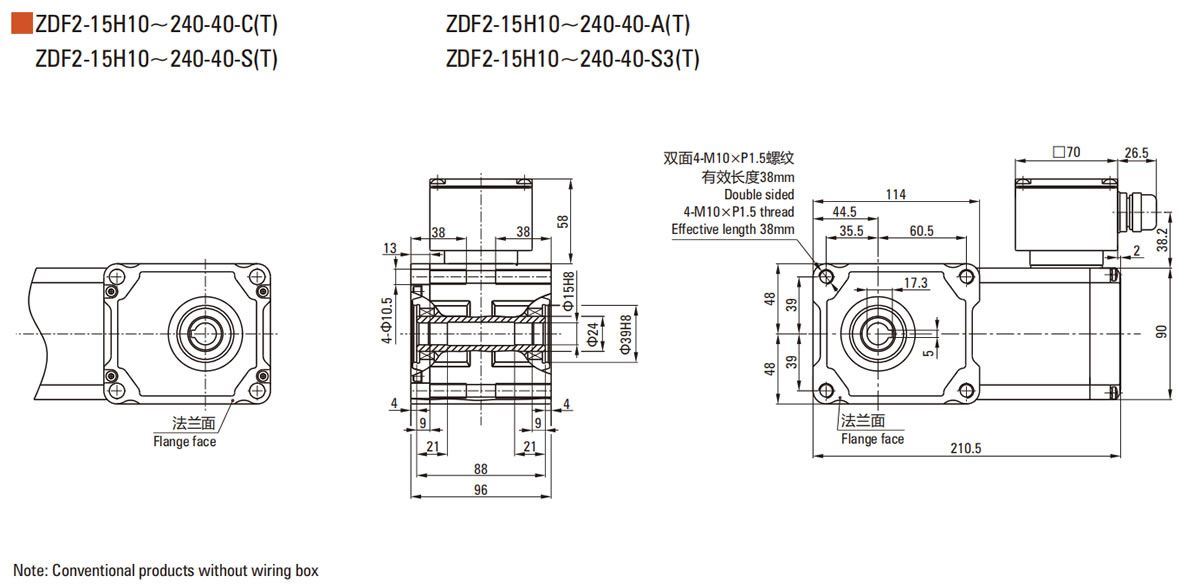

ZDF2-15H-40-S3(TB)
380 50 0.17 0.29 1320 0.90 0.56
460 60 0.16 0.23 1650 1.00 0.62
Model  Output Power  Voltage  Frequency  Rated Current  Rated Torque  Rated Speed  Locked Rotor Torque  Locked Rotor Current Capacitor  Insulation Grade
W V Hz A N.m r/min N.m A UF

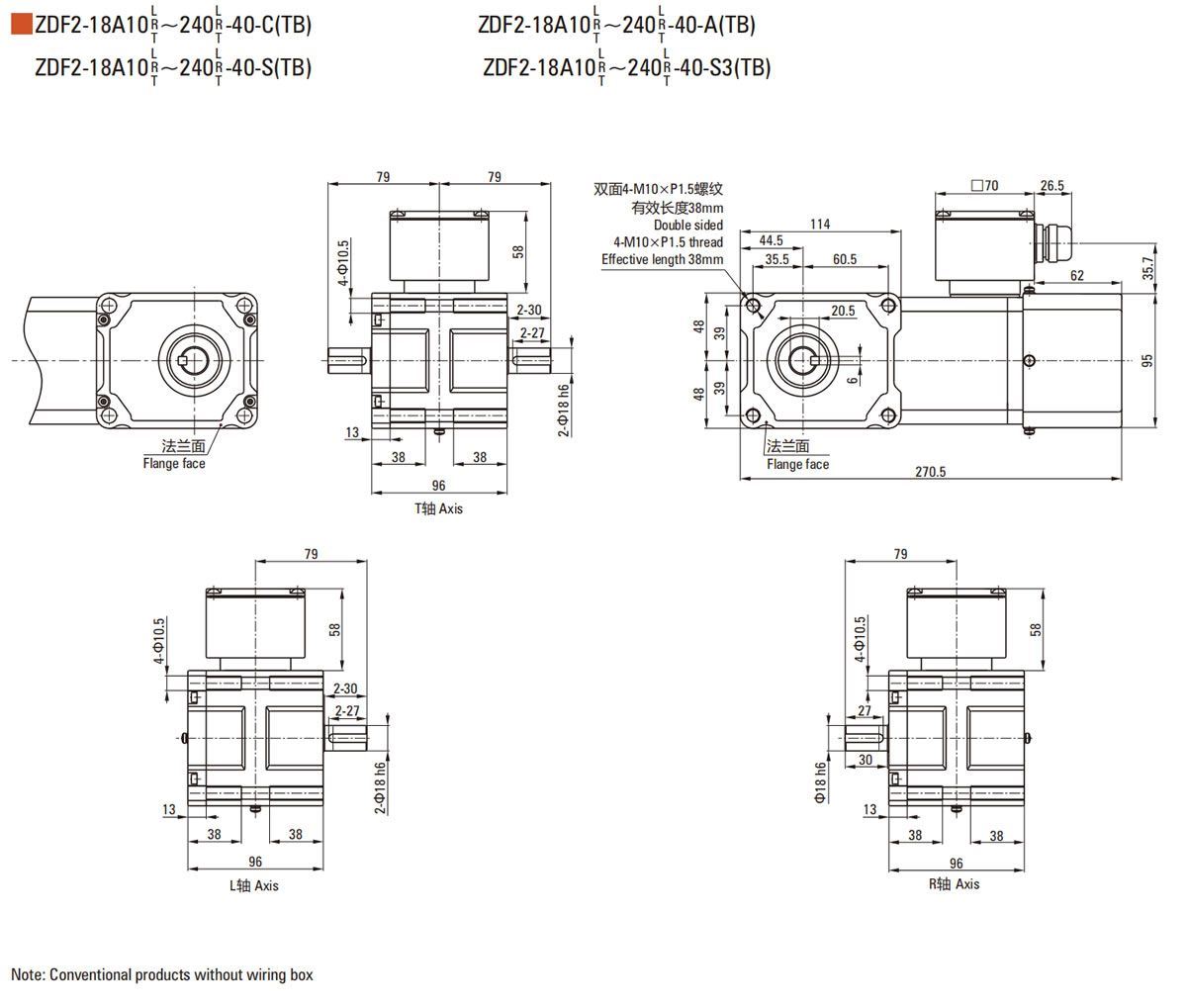

ZDF2-18A-40-C(TB) 40 220 60 0.33 0.23 1650 0.20 0.80 2.50 F
220 50 0.33 0.29 1350 0.20 0.85
ZDF2-18A-40-A(TB)
110 50 0.65 0.29 1350 0.20 1.70 10.0
110 60 0.65 0.23 1650 0.20 1.50
Specifications
Specifications

Applications
  • Positioning Systems Cam dividers for precision automation.
  • Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
  • Food Industry Ice cream makers.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
  • Custom Automation Non-standard automated systems.
Cam Dividers

Need more help? Let us know your requirements.
