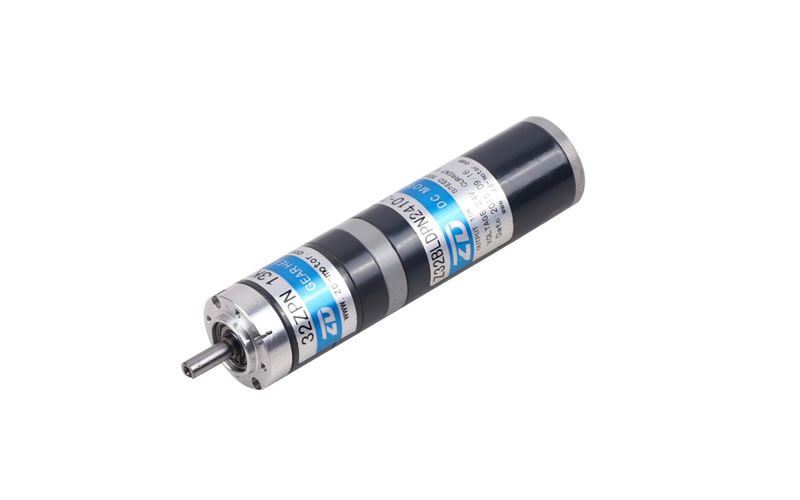

32mm 10W/15W Brush DC Planetary Gear Motor

32mm 10W/15W Brush DC Planetary Gear Motor

Request a Quote PDF Download
Motor Specifications

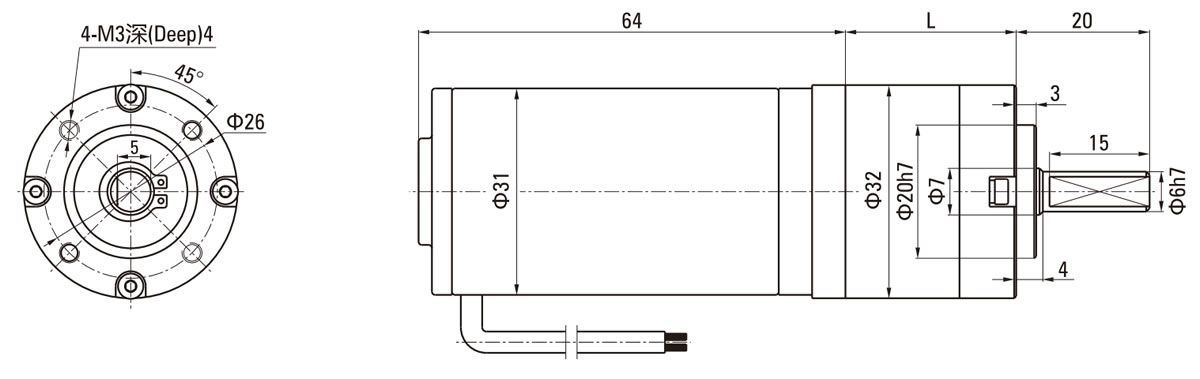

Motor Model Gearbox Model Gear Ratio Dimension (mm)
Z32DPN 32ZPN() Stage 1 3.7～6.75 25.6
Stage 2 14～46 35.9
Stage 3 51～308 46.2
Brush DC Motor Technical Data
Motor Model Voltage V Power W No-load Current A No-load Speed RPM Rated Current A Rated Speed RPM Rated Torque N.m Motor Life H
Z32DPN2410-40S 24 10 0.4 5000 0.7 4000 0.024 2000
Z32DPN2415-50S 24 15 0.5 6000 1.1 5000 0.029 2000
Brush DC Planetary Gear Motor Technical Data
Gear Ratio 3.7 5.18 6.75 13.73 19.2 25 28.93 34.97 45.56 50.89 68.08 78.7 92.7
Output Shaft Speed r/min 1081 932 772 592 285 210 160 137 114 87 78 59 50
Allowance Torque N.m 0.080 0.092 0.111 0.145 0.270 0.367 0.483 0.561 0.6777 0.890 0.889 1.185 1.3777
Reduction Stage 1 1 1 1 2 2 2 2 2 2 3 3 3
Gear Ratio 99.5 115.1 129.6 149.9 168.85 195.28 236.1 307.54
Output Shaft Speed r/min 43 40 35 31 26 23 20 17 13
Allowance Torque N.m 1.621 1.743 2.004 2.266 2.614 2.945 3.400 4.000 4.000
Reduction Stage 3 3 3 3 3 3 3 3 3
Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
