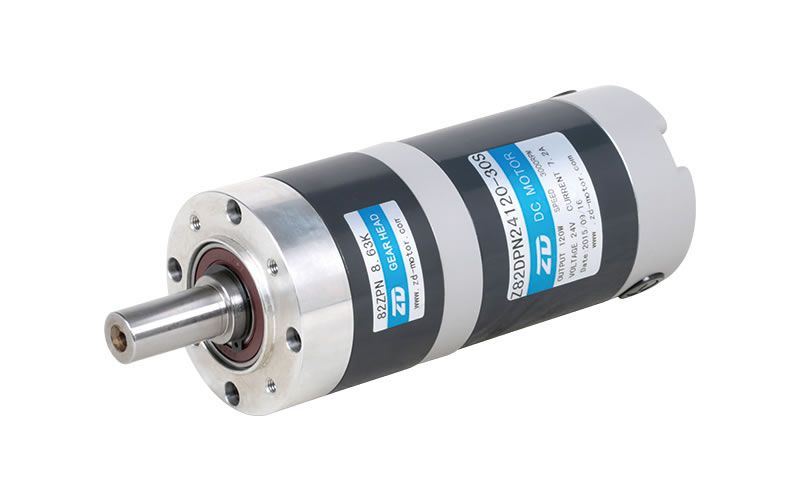

82mm 120W Brush DC Planetary Gear Motor

82mm 120W Brush DC Planetary Gear Motor

Request a Quote PDF Download
Motor Specifications

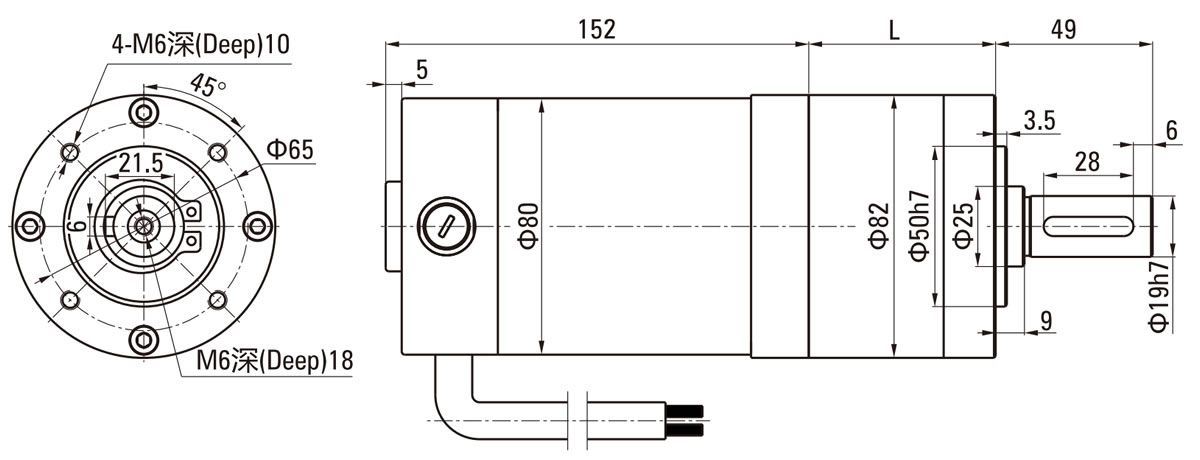

Motor Model Gearbox Model Gear Ratio Dimension (mm)
Z82DPN 82PN() 3.65～8.63 63.70
13.53～58.22 80.50
67.08～392.98 103.2
Brush DC Motor Technical Data
Motor Model Voltage V Rated Power W No-load Current A No-load Speed RPM Rated Current A Rated Speed RPM Rated Torque N.m Motor Life H
Z82DPN1290-30S 12 90 2.5 3500 10.5 3000 0.287 2000
Z82DPN24120-30S 24 120 2.0 3400 7.20 3000 0.382 2000
Z82DPN48180-30S 48 180 1.5 3400 5.50 3000 0.573 2000
Brush DC Planetary Gear Motor Technical Data
Gear Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output Shaft Speed r/min 822 560 458 348 222 159 122 107 89 67 52 45 37
Allowance Torque N.m 1.30 1.80 2.30 3.00 4.20 5.90 7.60 8.70 10.5 13.8 18.0 18.7 22.6
Reduction Stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Gear Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output Shaft Speed r/min 33 29 25 24 21 18 16 13 9.9 7.6
Allowance Torque N.m 25.5 28.7 33.2 35.6 40.5 46.2 53.4 64.6 84.0 84.0
Reduction Stage 3 3 3 3 3 3 3 3 3 3
Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
