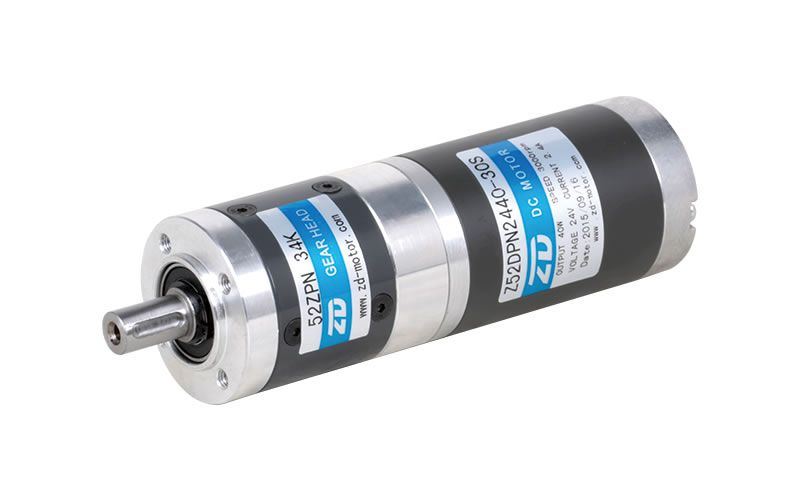

52mm 40W Brush DC Planetary Gear Motor

52mm 40W Brush DC Planetary Gear Motor

Request a Quote PDF Download
Motor Specifications

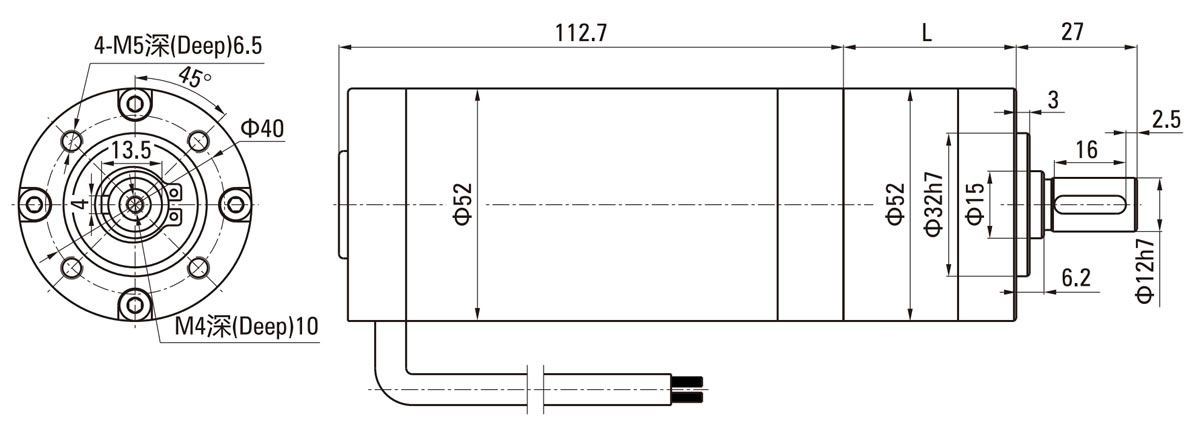

Motor Model Gearbox Model Gear Ratio Dimension (mm)
Z52DPN 52PN() 3.65～8.63 38.6
13.53～58.22 54.2
67.08～392.98 69.8
Brush DC Motor Technical Data
Motor Model Voltage V Rated Power W No-load Current A No-load Speed RPM Rated Current A Rated Speed RPM Rated Torque N.m Motor Life H
Z52DPN2440-30S 24 40 1.0 3500 2.5 3000 0.127 2000
Z52DPN2460-30S 24 60 1.2 3600 4.0 3000 0.191 2000
Brush DC Planetary Gear Motor Technical Data
Gear Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output Shaft Speed r/min 822 560 458 348 222 159 122 107 89 67 52 45 37
Allowance Torque N.m 0.42 0.61 0.75 0.99 1.39 1.95 2.54 2.89 3.49 4.60 5.99 6.22 7.52
Reduction Stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Gear Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output Shaft Speed r/min 33 29 25 24 21 18 16 13 9.9 7.6
Allowance Torque N.m 8.47 9.54 11.03 11.84 13.48 15.36 17.76 21.47 25.00 25.00
Reduction Stage 3 3 3 3 3 3 3 3 3 3
Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
