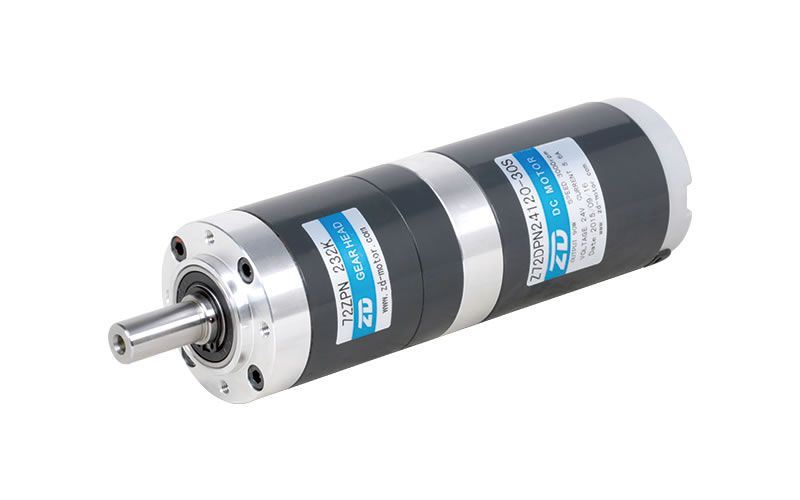

72mm 120W Brush DC Planetary Gear Motor

72mm 120W Brush DC Planetary Gear Motor

Request a Quote PDF Download
Motor Specifications

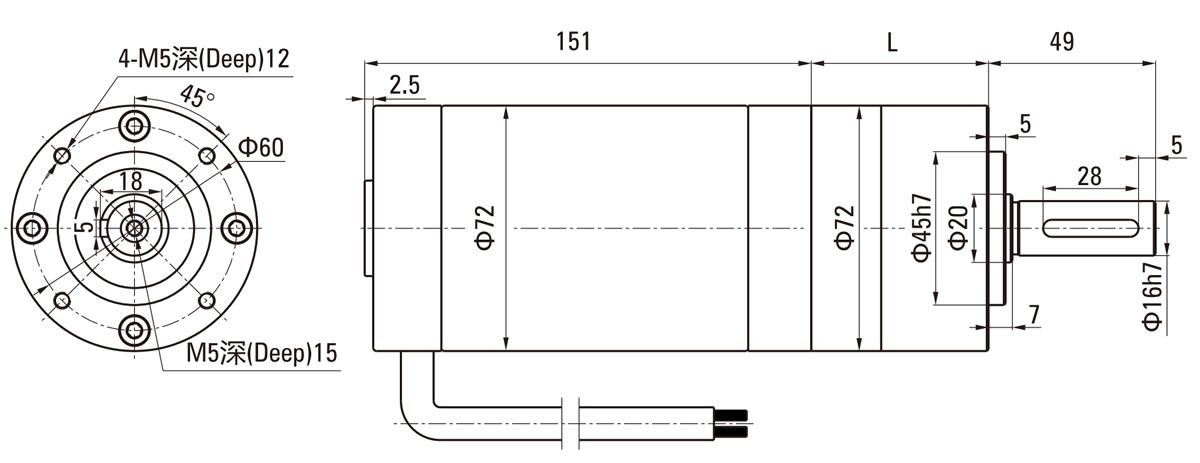

Motor Model Gearbox Model Gear Ratio Dimension (mm)
Z72DPN 72PN() 3.65～8.63 52.00
13.53～58.22 72.15
67.08～392.98 92.30
Brush DC Motor Technical Data
Motor Model Voltage V Rated Power W No-load Current A No-load Speed RPM Rated Current A Rated Speed RPM Rated Torque N.m Motor Life H
Z72DPN1260-30S 12 60 2.0 3500 7.2 3000 0.191 2000
Z72DPN2490-30S 24 90 2.0 3400 5.5 3000 0.287 2000
Z72DPN24120-30S 24 120 2.0 3500 7.2 3000 0.382 2000
Brush DC Planetary Gear Motor Technical Data
Gear Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output Shaft Speed r/min 822 560 458 348 222 159 122 107 89 67 52 45 37
Allowance Torque N.m 0.94 1.38 1.69 2.23 3.15 4.40 5.73 6.52 7.89 10.39 13.53 14.05 16.99
Reduction Stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Gear Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output Shaft Speed r/min 33 29 25 24 21 18 16 13 9.9 7.6
Allowance Torque N.m 19.14 21.55 24.93 26.76 30.45 34.70 40.13 48.52 63.20 82.33
Reduction Stage 3 3 3 3 3 3 3 3 3 3
Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
Other Products

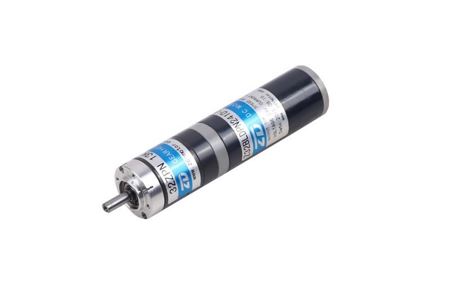

32mm 10W/15W Brush DC Planetary Gear Motor 32mm 10W/15W Brush DC Planetary Gear Motor

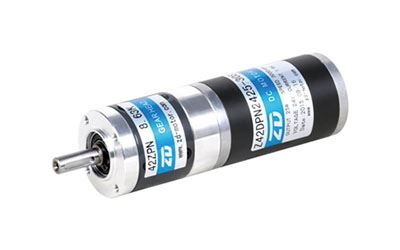

42mm 25W Brush DC Planetary Gear Motor 42mm 25W Brush DC Planetary Gear Motor
52mm 40W Brush DC Planetary Gear Motor 52mm 40W Brush DC Planetary Gear Motor
62mm 60W Brush DC Planetary Gear Motor 62mm 60W Brush DC Planetary Gear Motor
72mm 120W Brush DC Planetary Gear Motor 72mm 120W Brush DC Planetary Gear Motor

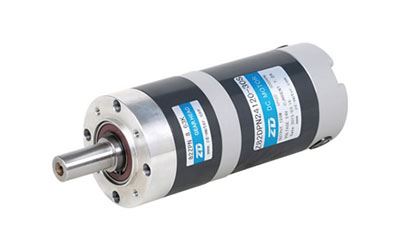

82mm 120W Brush DC Planetary Gear Motor 82mm 120W Brush DC Planetary Gear Motor

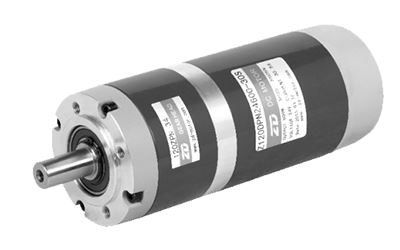

300W/500W/750W Brush DC Planetary Gear Motor 300W/500W/750W Brush DC Planetary Gear Motor
