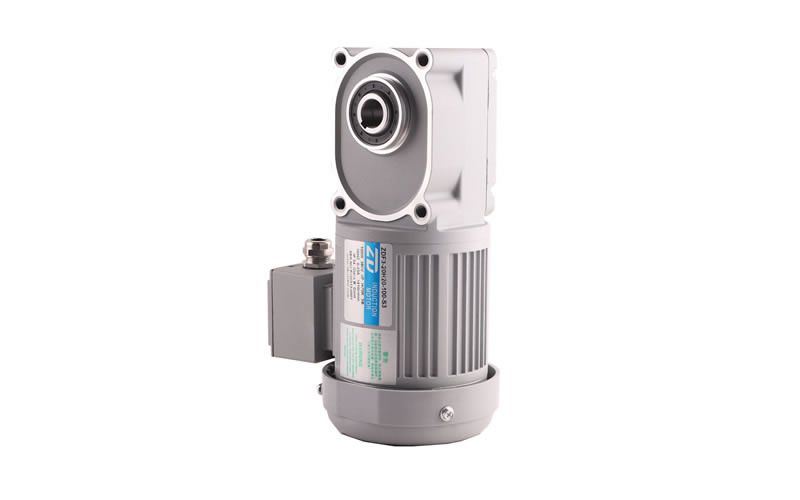

100W F2/F3 Hypoid Gear Motor

100W F2/F3 Hypoid Gear Motor

Request a Quote PDF Download
Specifications (Continuous Rating)
Model  Output Power  Voltage  Frequency  Rated Current  Rated Torque  Rated Speed  Locked Rotor Torque  Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A
ZDF3-25H-100-S(B) 100 200 60 0.60 0.56 1700 1.22 2.59 F
220 50 0.74 0.67 1410 1.85 1.10
ZDF3-25H-100-S3(B)
380 50 0.43 0.67 1410 1.85 1.64
460 60 0.41 0.55 1730 2.00 1.80
Model Output Power Voltage Frequency Rated Current Rated Torque Rated Speed Locked Rotor Torque Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A
ZDF3-22A-100-S(B) 100 200 60 0.60 0.56 1700 1.22 2.59 F
220 50 0.74 0.67 1410 1.85 1.10
ZDF3-22A-100-S3(B)
380 50 0.43 0.67 1410 1.85 1.64
460 60 0.41 0.55 1730 2.00 1.80

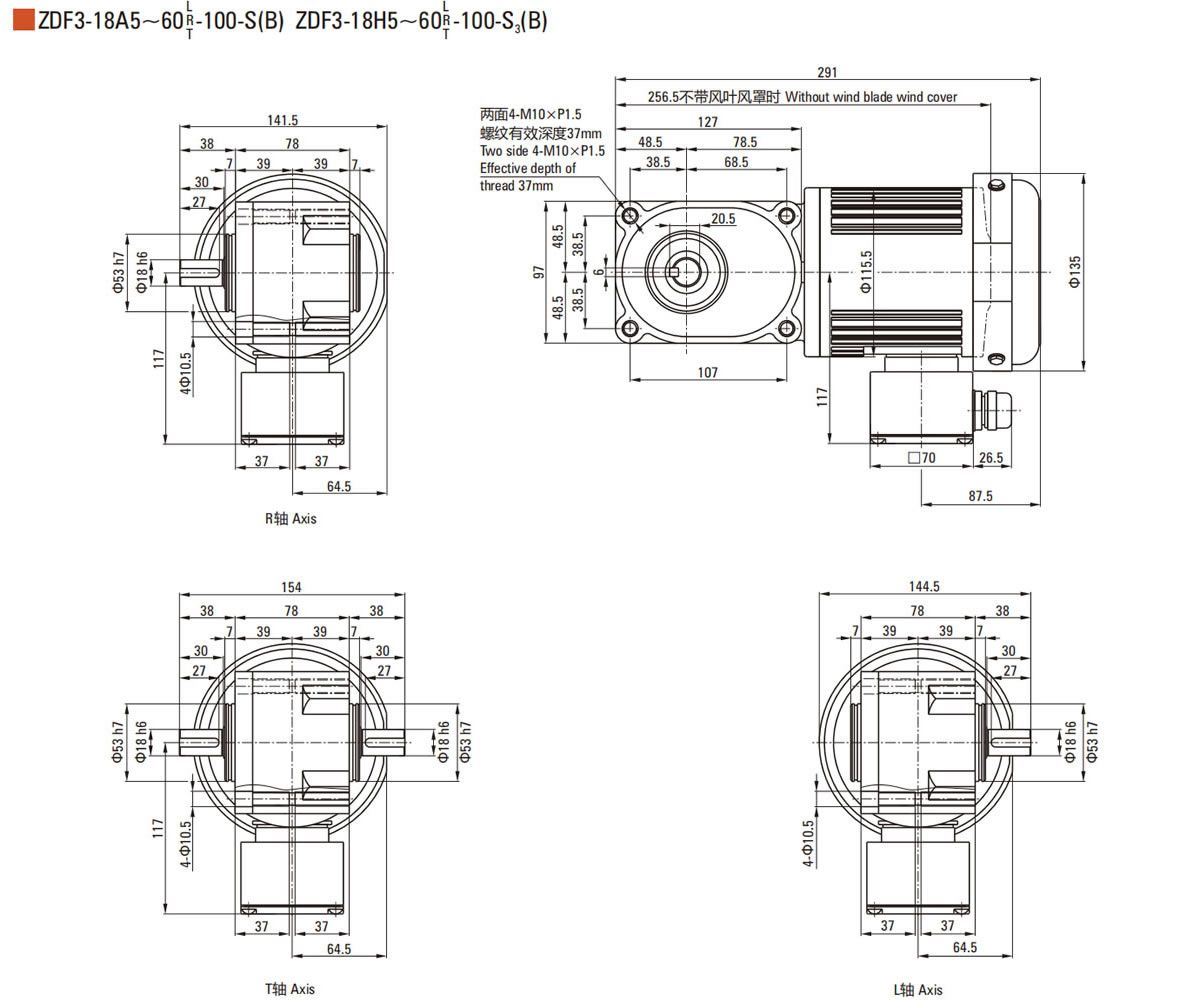

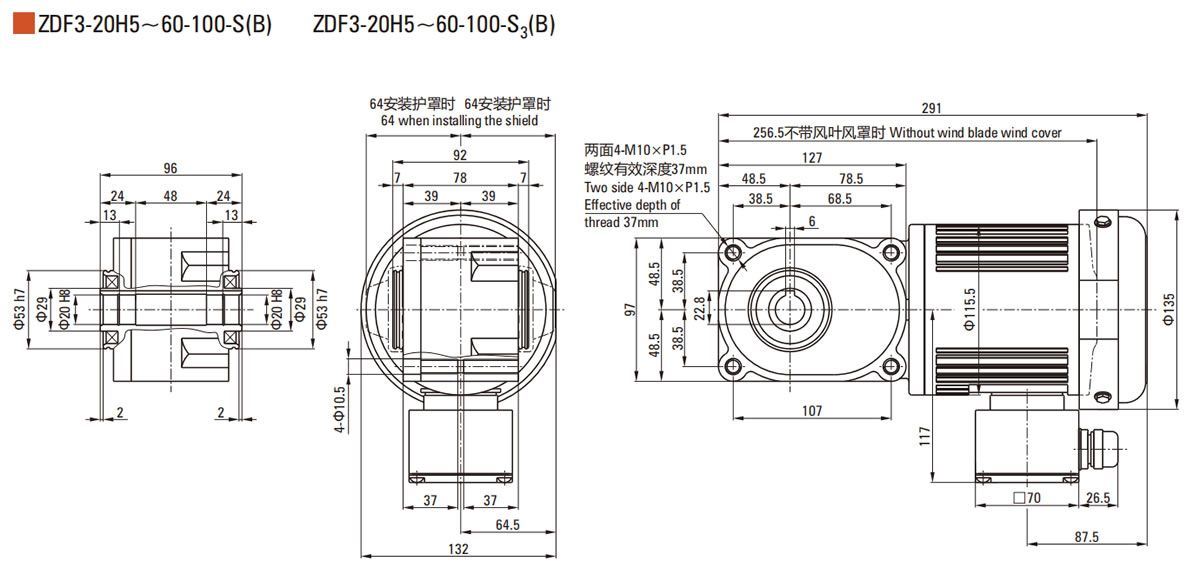

Specifications
Specifications
Applications
  • Positioning Systems Cam dividers for precision automation.
  • Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
  • Food Industry Ice cream makers.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
  • Custom Automation Non-standard automated systems.
Cam Dividers
Other Products
100W F2/F3 Hypoid Gear Motor 100W F2/F3 Hypoid Gear Motor
200W F2/F3 Hypoid Gear Motor 200W F2/F3 Hypoid Gear Motor
400W F2/F3 Hypoid Gear Motor 400W F2/F3 Hypoid Gear Motor
750W F2/F3 Hypoid Gear Motor 750W F2/F3 Hypoid Gear Motor
1500W F2/F3 Hypoid Gear Motor 1500W F2/F3 Hypoid Gear Motor
2200W F2/F3 Hypoid Gear Motor 2200W F2/F3 Hypoid Gear Motor
Manufacturing
Manufacturing
Manufacturing
Manufacturing

The company continually invests in the introduction of internationally advanced production and testing equipment. Zhongda has established a comprehensive manufacturing system, comprising the following components:

Gear Processing Equipment primarily composed of Japan's Mitsubishi and Germany's KAPP.
Housing Processing Equipment mainly from Japan's MAKINO and Mazak.
Motor Processing Equipment featuring Japan's AIDA and NITTOKU.
Product Inspection Equipment including Germany's Zeiss and Klingelnberg.
