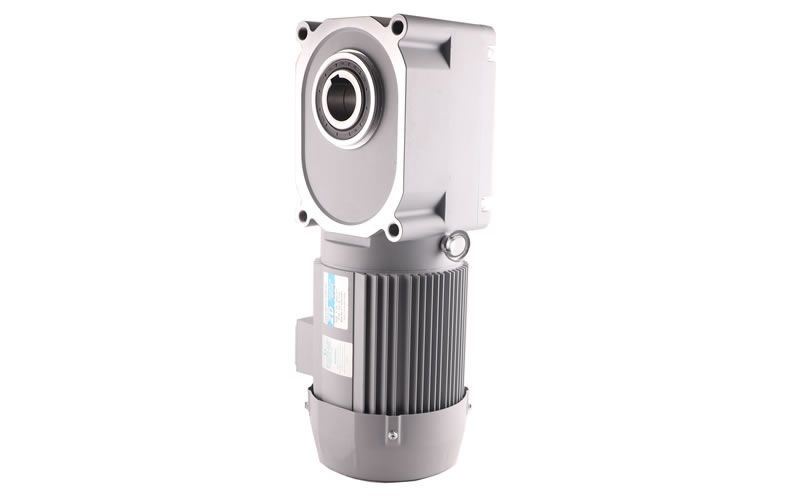

2200W F2/F3 Hypoid Gear Motor

2200W F2/F3 Hypoid Gear Motor

Request a Quote PDF Download
Specifications (Continuous Rating)
Model Output Power Voltage Frequency Rated Current Rated Torque Rated Speed Locked Rotor Torque Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A

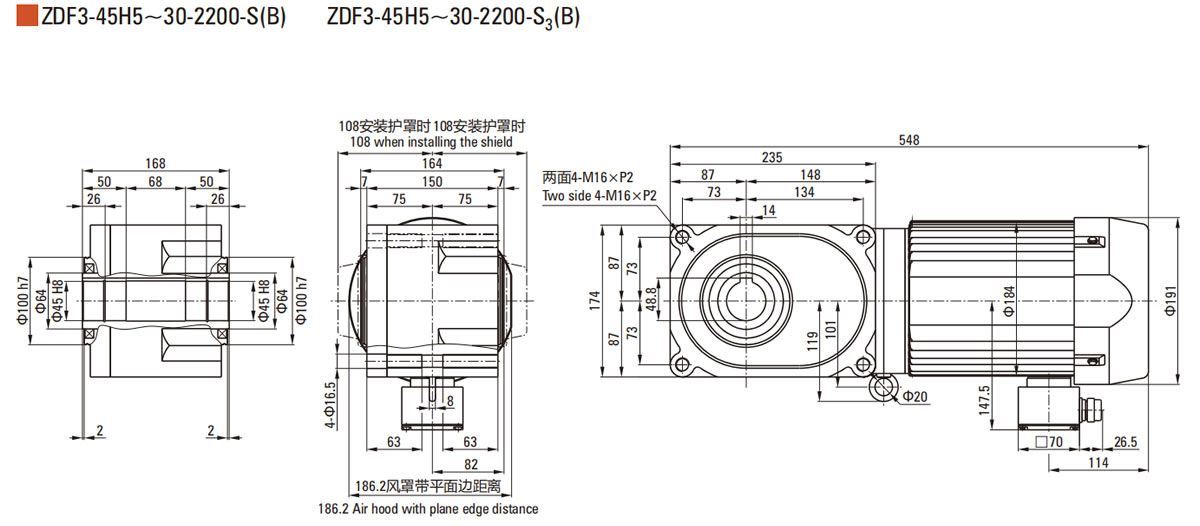

ZDF3-45H-2200-S 2200 200 60 8.50 12.4 1700 34.00 52.00 F
220 50 8.70 14.7 1430 70.00 69.00
ZDF3-45H-2200-S3
380 50 5.00 14.7 1430 70.00 40.00
460 60 4.50 12.0 1740 83.00 46.00
Model Output Power Voltage Frequency Rated Current Rated Torque Rated Speed Locked Rotor Torque Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A

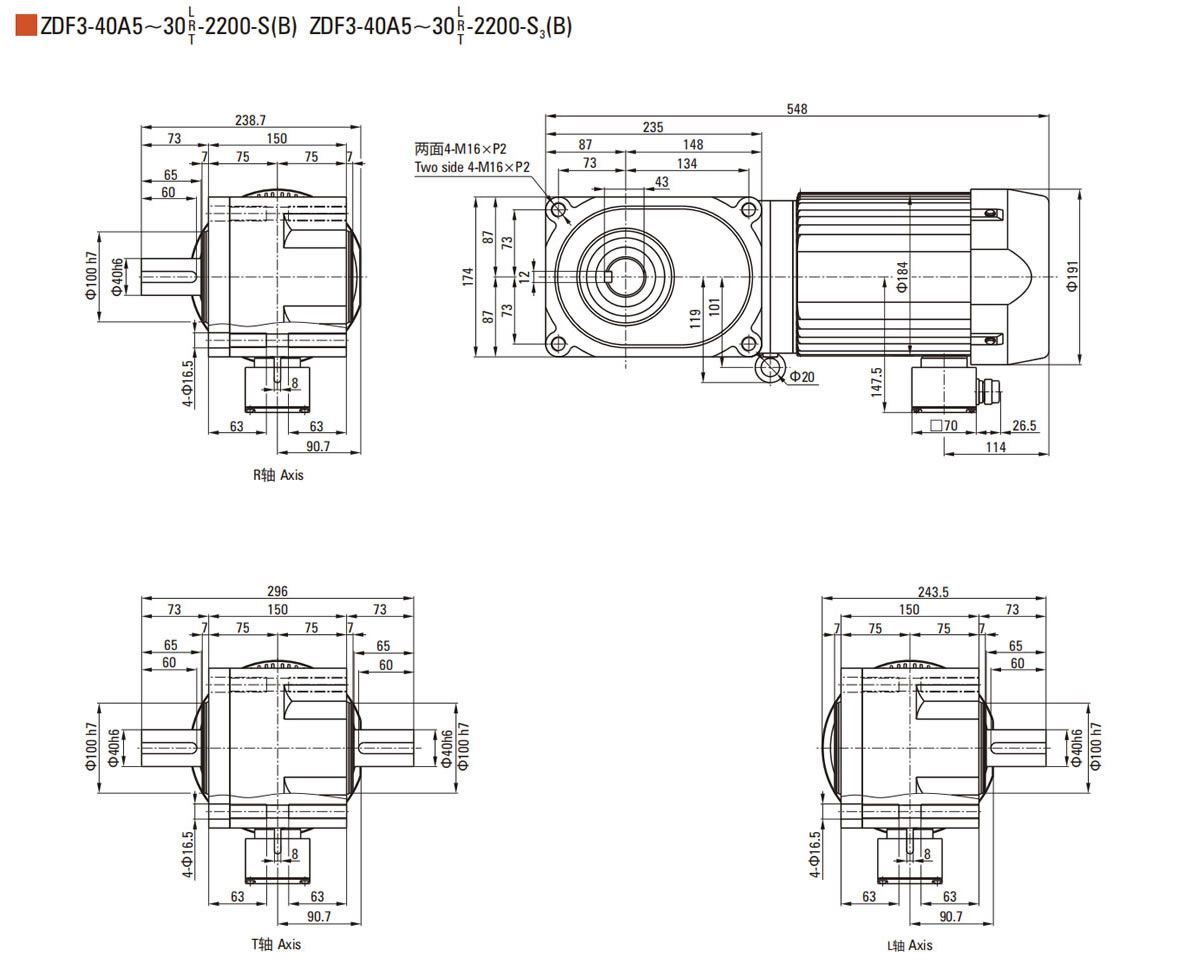

ZDF3-40A-2200-S 2200 200 60 8.50 12.4 1700 34.00 52.00 F
220 50 8.70 14.7 1430 70.00 69.00
ZDF3-40A-2200-S3
380 50 5.00 14.7 1430 70.00 40.00
460 60 4.50 12.0 1740 83.00 46.00
Specifications
Specifications
Applications

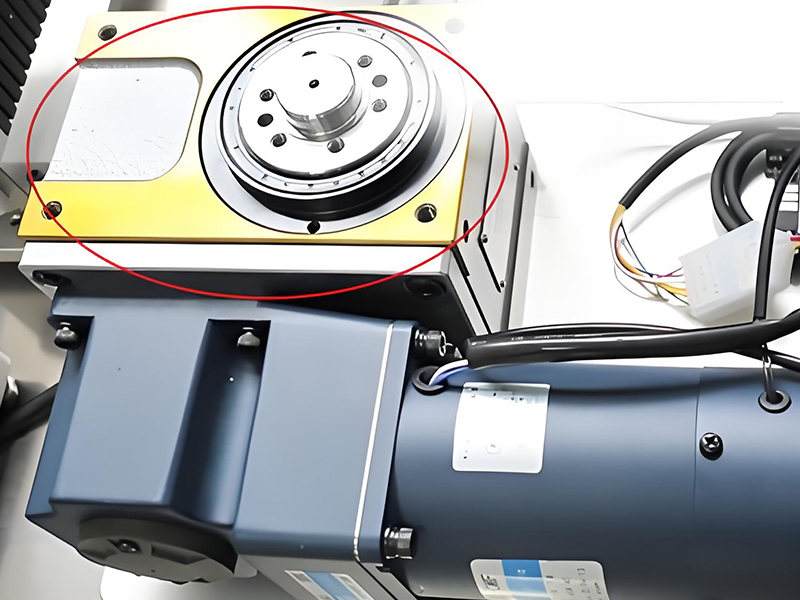

  • Positioning Systems Cam dividers for precision automation.
  • Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
  • Food Industry Ice cream makers.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
  • Custom Automation Non-standard automated systems.
Cam Dividers
Other Products

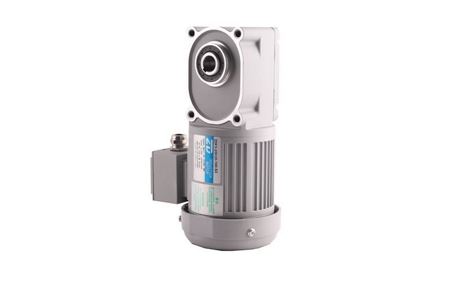

100W F2/F3 Hypoid Gear Motor 100W F2/F3 Hypoid Gear Motor
200W F2/F3 Hypoid Gear Motor 200W F2/F3 Hypoid Gear Motor

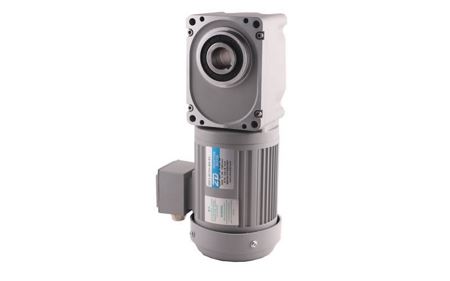

400W F2/F3 Hypoid Gear Motor 400W F2/F3 Hypoid Gear Motor

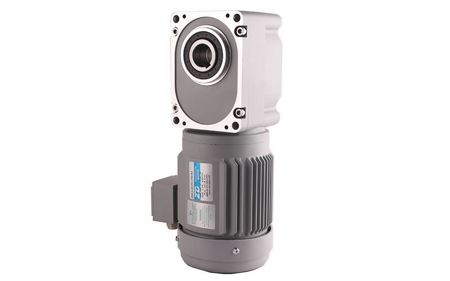

750W F2/F3 Hypoid Gear Motor 750W F2/F3 Hypoid Gear Motor

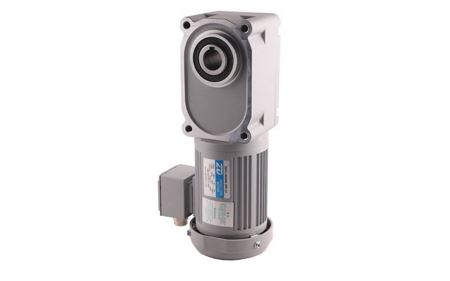

1500W F2/F3 Hypoid Gear Motor 1500W F2/F3 Hypoid Gear Motor
