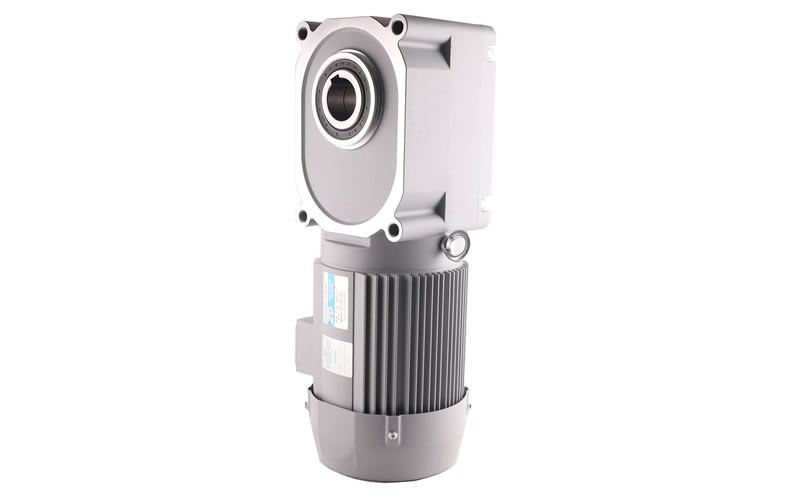

1500W F2/F3 Hypoid Gear Motor

1500W F2/F3 Hypoid Gear Motor

Request a Quote PDF Download
Specifications (Continuous Rating)
Model Output Power Voltage Frequency Rated Current Rated Torque Rated Speed Locked Rotor Torque Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A

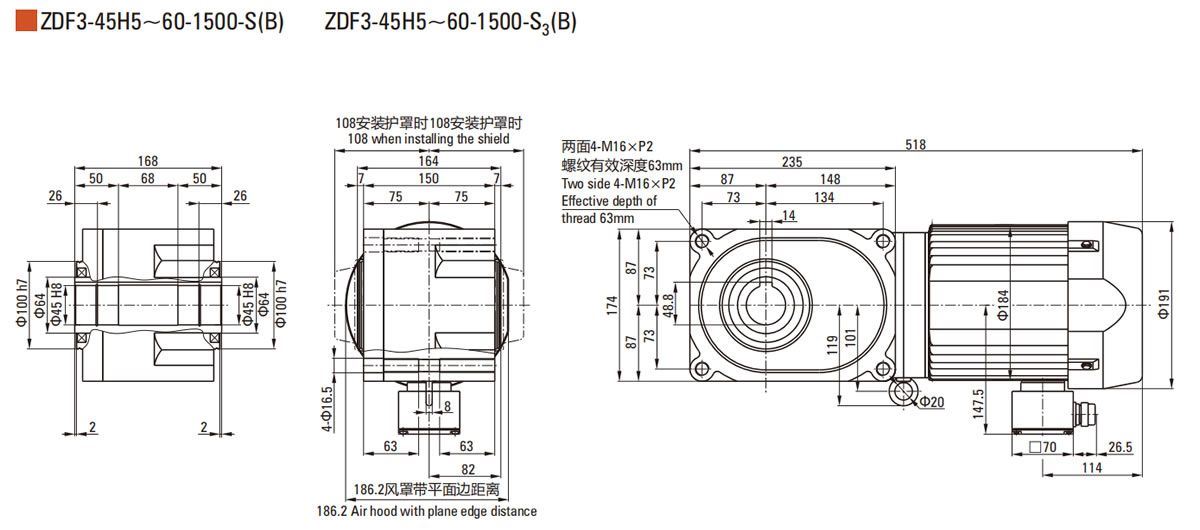

ZDF3-45H-1500-S(B) 1500 200 60 7.10 8.70 1650 15.60 30.00 F
220 50 6.70 10.2 1410 29.50 38.00
ZDF3-45H-1500-S3(B)
380 50 3.70 10.2 1400 22.30 31.00
460 60 3.30 8.50 1740 31.60 24.00
Model Output Power Voltage Frequency Rated Current Rated Torque Rated Speed Locked Rotor Torque Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A

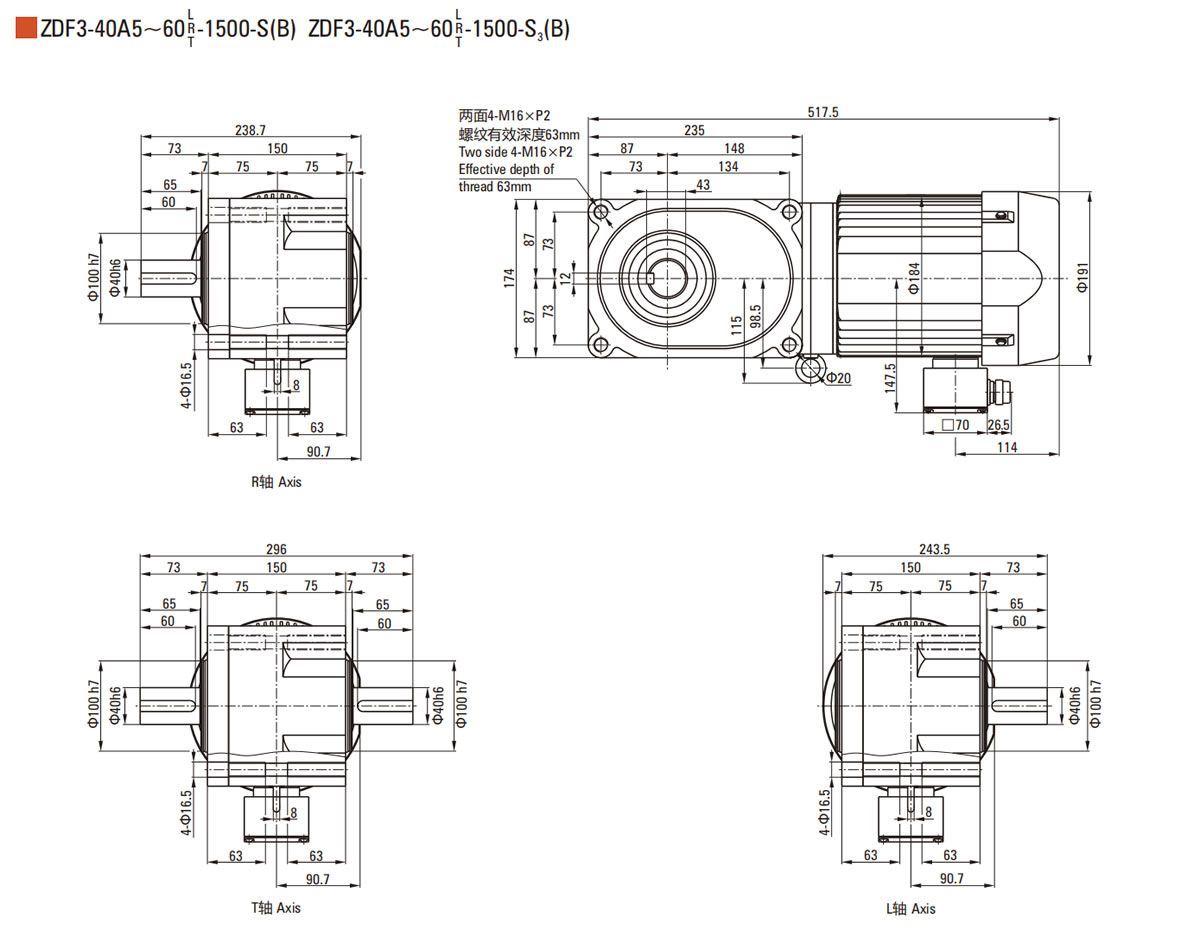

ZDF3-40A-1500-S(B) 1500 200 60 7.10 8.70 1650 15.60 30.00 F
220 50 6.70 10.2 1410 29.50 38.00
ZDF3-40A-1500-S3(B)
380 50 3.70 10.2 1400 22.30 31.00
460 60 3.30 8.50 1740 31.60 24.00
Specifications
Specifications
Applications
  • Positioning Systems Cam dividers for precision automation.
  • Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
  • Food Industry Ice cream makers.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
  • Custom Automation Non-standard automated systems.
