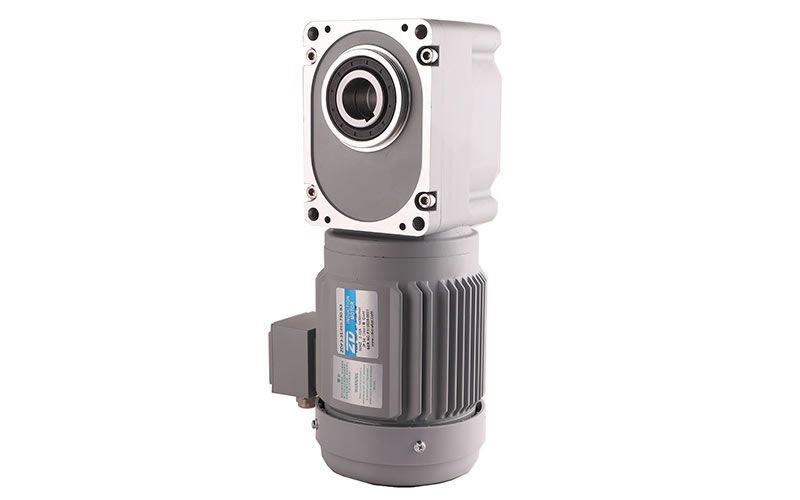

750W F2/F3 Hypoid Gear Motor

750W F2/F3 Hypoid Gear Motor

Request a Quote PDF Download
Specifications (Continuous Rating)
Model Output Power Voltage Frequency Rated Current Rated Torque Rated Speed Locked Rotor Torque Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A
ZDF3-35H-750-S(B)
ZDF3-45H-750-S(B) 		750 200 60 3.45 4.22 1700 9.20 10.0 F
220 50 4.24 5.00 1430 15.5 12.0
ZDF3-35H-750-S3(B)
ZDF3-45H-750-S3(B)
380 50 2.45 5.00 1430 15.5 12.0
460 60 2.28 4.12 1730 16.0 13.2
Model Output Power Voltage Frequency Rated Current Rated Torque Rated Speed Locked Rotor Torque Locked Rotor Current Insulation Grade
W V Hz A N.m r/min N.m A
ZDF3-32A-750-S(B)
ZDF3-40A-750-S(B) 		750 200 60 3.45 4.22 1700 9.20 10.0 F
220 50 4.24 5.00 1430 15.5 12.0
ZDF3-32A-750-S3(B)
ZDF3-40A-750-S3(B)
380 50 2.45 5.00 1430 15.5 12.0
460 60 2.28 4.12 1730 16.0 13.2

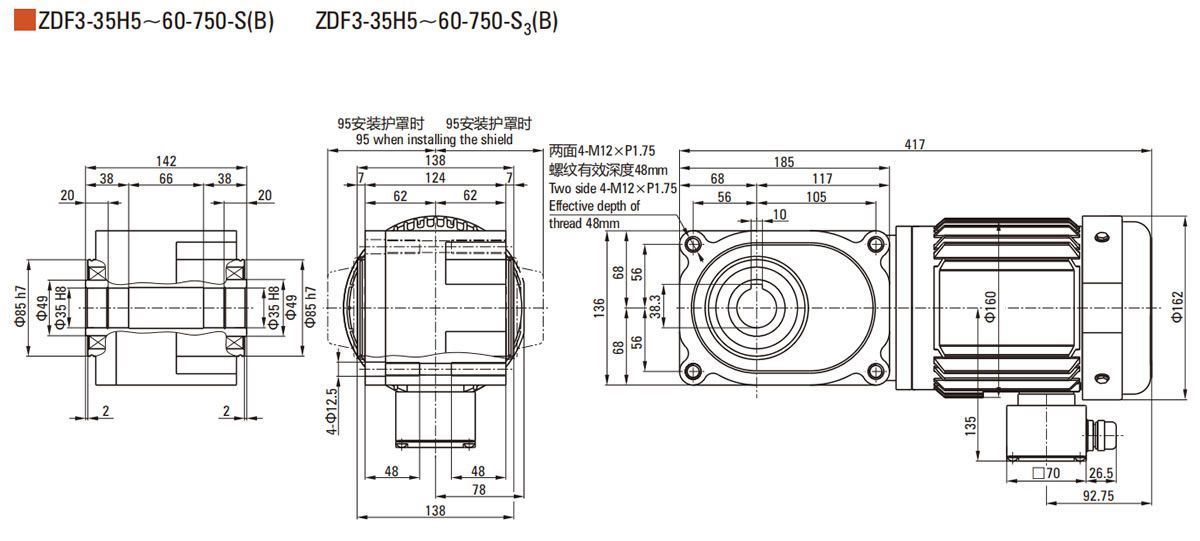

Specifications

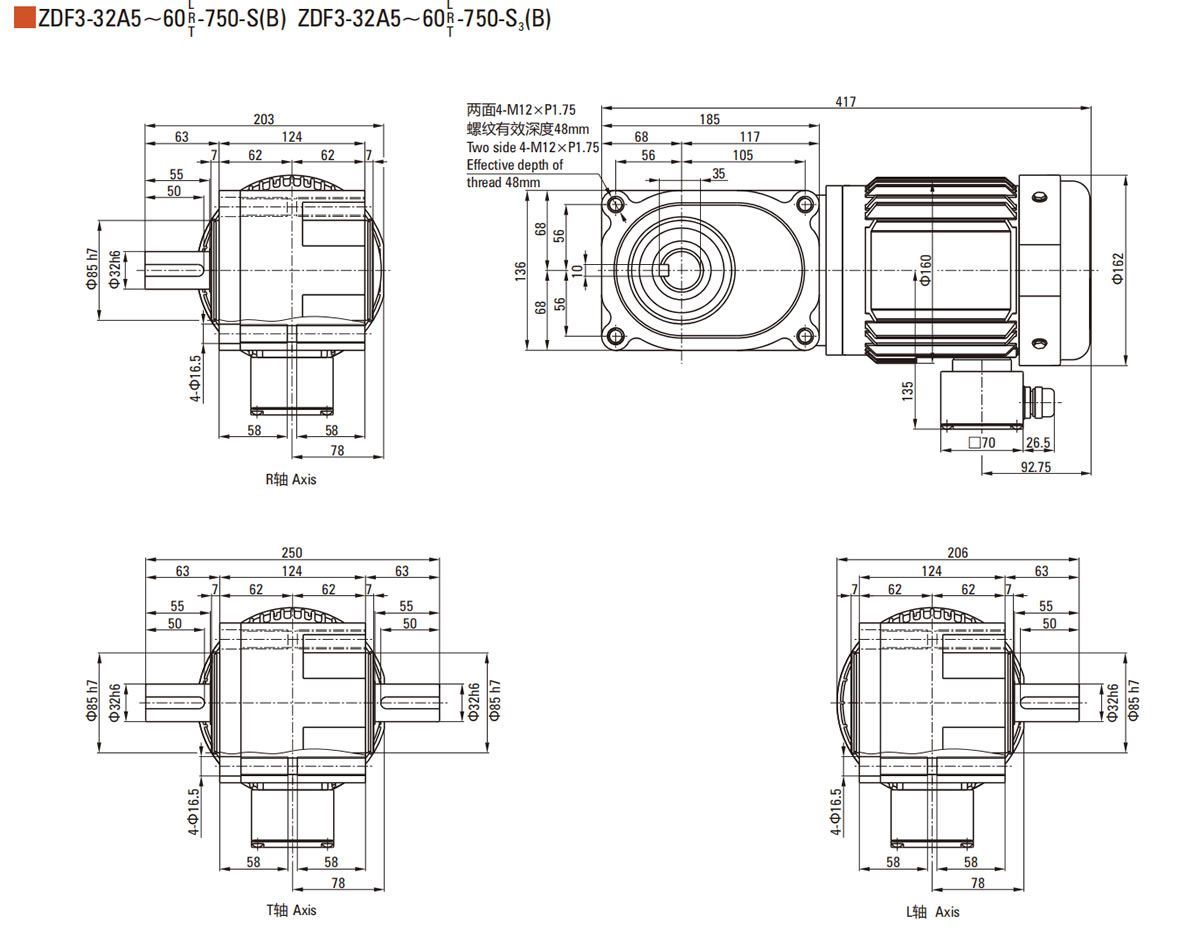

Specifications
Applications
  • Positioning Systems Cam dividers for precision automation.
  • Conveyor Systems Belt conveyors, high-speed chains, roller conveyors.
  • Food Industry Ice cream makers.
  • Battery Manufacturing Kiln conveyor systems for anode and cathode materials.
  • Custom Automation Non-standard automated systems.
