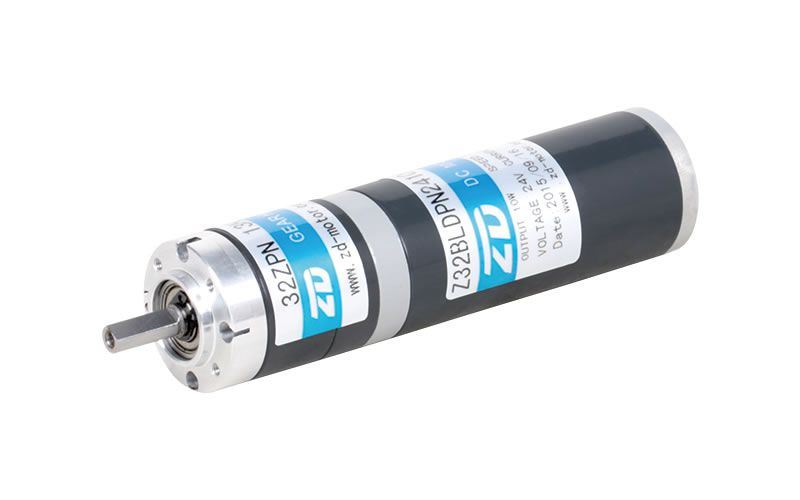

32mm 25W Brushless DC Planetary Gear Motor

32mm 25W Brushless DC Planetary Gear Motor

Request a Quote PDF Download
  • Specifications
  • BLDC
  • BLDC Planetary Gear
  • Applications
Motor Specifications

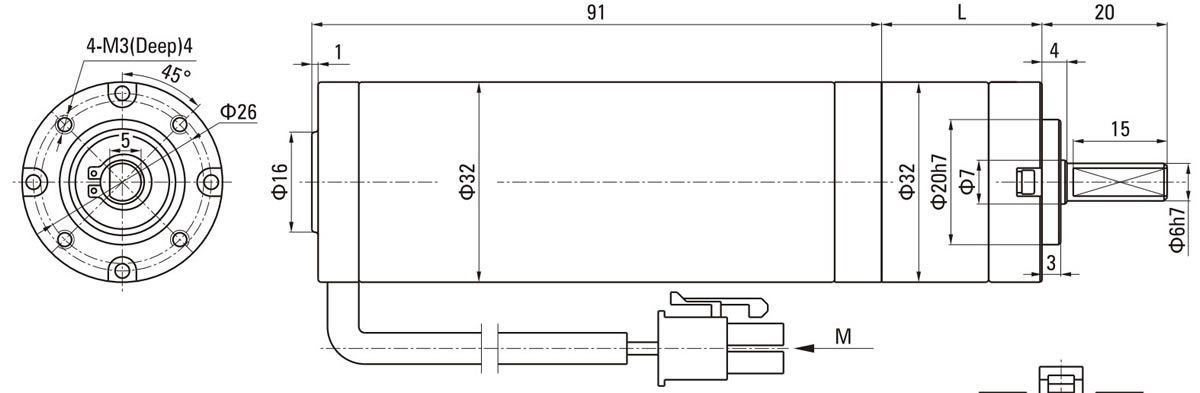

Motor Model Gearbox Model Gear Ratio Dimension (mm)
Z32BLDPN 32PN() 3.7~6.75 25.6
13.73~45.56 35.9
50.89~307.54 46.2
BLDC Motor Technical Data
Motor Model Voltage V Rated Power W Rated Current A Rated Speed RPM Rated Torque N.m IP Ratings
Z32BLDPN2420-40S 24 20 1.3 4000 0.048 20
BLDC Planetary Gear Motor Technical Data
Gear Ratio 3.7 5.18 6.75 13.73 19.2 25 28.93 34.97 45.56 50.89 68.08 78.7 92.7
Output Shaft Speed r/min 1081 772 593 291 208 160 138 114 88 79 59 51 43
Allowance Torque N.m 0.16 0.22 0.29 0.53 0.74 0.97 1.12 1.35 1.76 1.77 2.37 2.74 3.23
Reduction Stage 1 1 1 2 2 2 2 2 2 3 3 3 3
Gear Ratio 99.5 115.1 129.6 149.9 168.85 195.28 236.1 307.54
Output Shaft Speed r/min 40 35 31 27 24 20 17 13
Allowance Torque N.m 3.47 4.00 4.00 4.00 4.00 4.00 4.00 4.00
Reduction Stage 3 3 3 3 3 3 3 3
Specifications

Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.

Need more help? Let us know your requirements.
