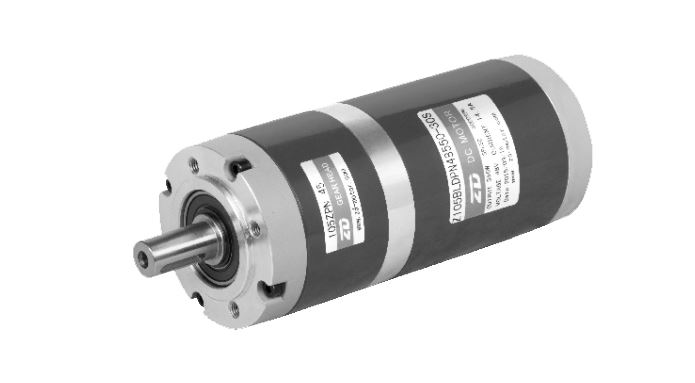

105mm 350W/550W/750W Brushless DC Planetary Gear Motor

105mm 350W/550W/750W Brushless DC Planetary Gear Motor

Request a Quote PDF Download
Motor Specifications
Motor Model Gearbox Model Gear Ratio Dimension (mm)
Z105BLDPN 105ZPN() Stage 1 3.65～8.63 83.80
Stage 2 14～58 114.9
Stage 3 67～393 146.0
BLDC Motor Technical Data
Motor Model Voltage V Power W No-load Current A No-load Speed Rated Current A Rated Speed RPM Rated Torque N.m Motor Life H
Z105BLDPN24350-30S 24 350 1.8 3500 18.5 3000 1.114 5000
Z105BLDPN48550-30S 48 550 1.5 3500 14.5 3000 1.751 5000
Z105BLDPN48750-30S 48 750 1.8 3600 19.5 3000 2.386 5000
BLDC Planetary Gear Motor Technical Data
Gear Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output Shaft Speed r/min 822 560 458 348 222 159 122 107 89 67 52 45 37
Allowance Torque N.m 5.75 8.45 10.32 13.60 19.19 26.83 34.96 39.78 48.10 63.38 82.57 85.74 103.67
Reduction Stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Gear Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output Shaft Speed r/min 33 29 25 24 21 18 16 13 9.9 7.6
Allowance Torque N.m 116.77 131.49 152.07 163.27 185.79 195.00 195.00 195.00 195.00 195.00
Reduction Stage 3 3 3 3 3 3 3 3 3 3

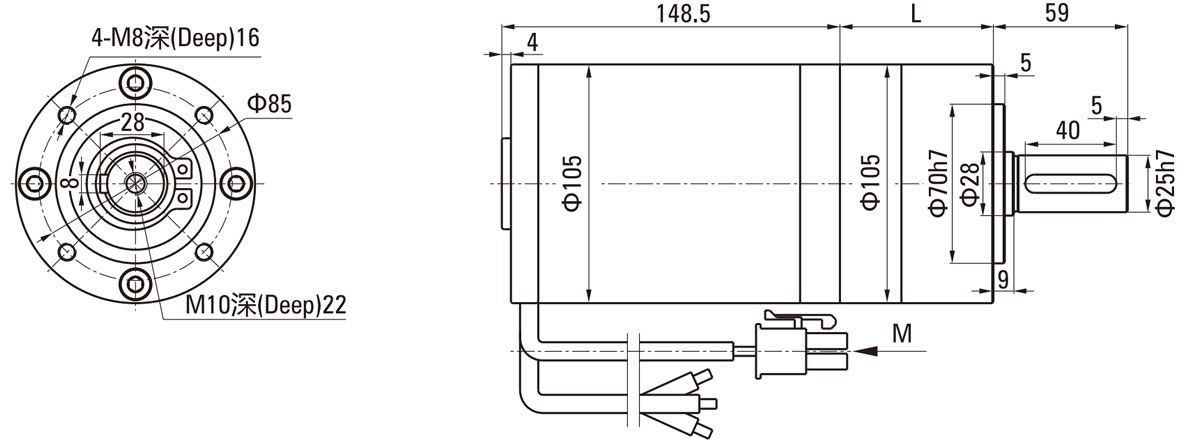

Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
