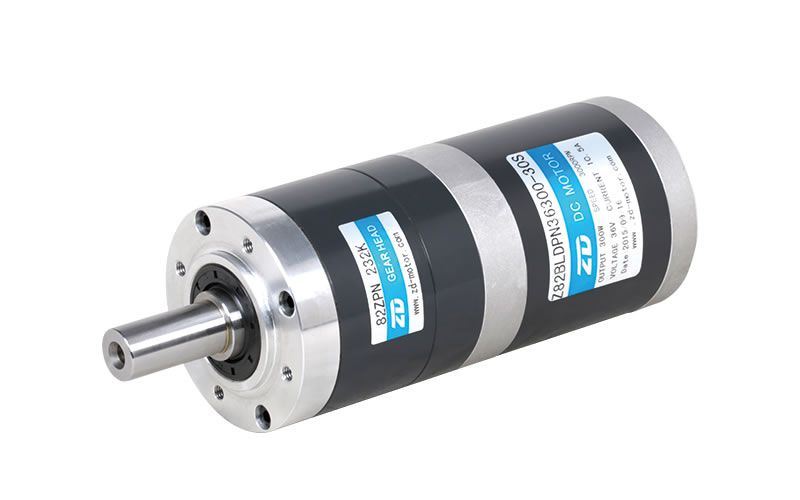

82mm 300W Brushless DC Planetary Gear Motor

82mm 300W Brushless DC Planetary Gear Motor

Request a Quote PDF Download

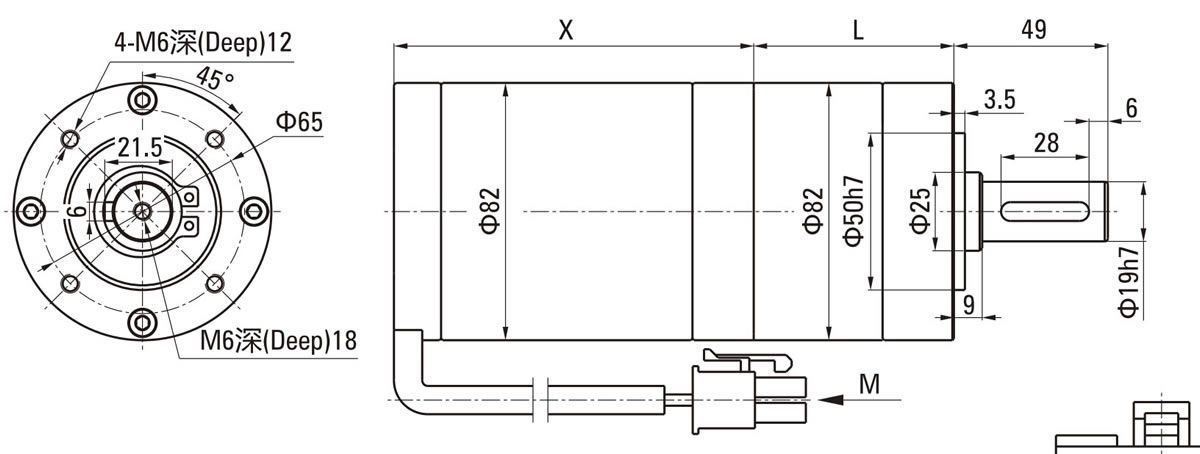

Motor Specifications
Motor Model X Dimension (mm) Gearbox Model Gear Ratio L Dimension (mm)
Z82BLDPN24200-30S 114.5 82PN() 3.65～8.63 63.70
13.53～58.22 80.50
Z82BLDPN24300-30S 136.5
67.08～392.98 103.2
BLDC Motor Technical Data
Motor Model Voltage V Rated Power W Rated Current A Rated Speed RPM Rated Torque N.m IP Ratings
Z82BLDPN24200-30S 24 200 12 3000 0.637 20
Z82BLDPN24300-30S 24 300 18 3000 0.955 20
BLDC Planetary Gear Motor Technical Data
Gear Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output Shaft Speed r/min 822 560 458 348 222 159 122 107 88 67 52 45 37
Allowance Torque N.m 2.09 3.07 3.75 4.94 6.98 9.76 12.71 14.47 17.49 23.05 30.02 31.18 37.70
Reduction Stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Gear Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output Shaft Speed r/min 33 29 25 23 21 18 16 13 10 8
Allowance Torque N.m 42.46 47.82 55.30 59.37 67.56 76.98 89.03 107.64 120.0 120.0
Reduction Stage 3 3 3 3 3 3 3 3 3 3
Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
