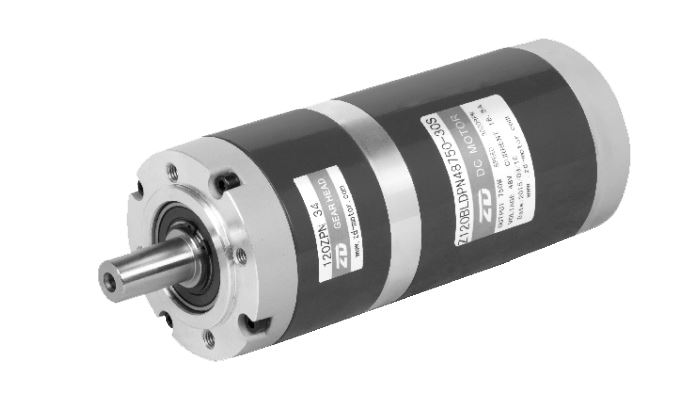

120mm 400W/750W/900W Brushless DC Planetary Gear Motor

120mm 400W/750W/900W Brushless DC Planetary Gear Motor

Request a Quote PDF Download

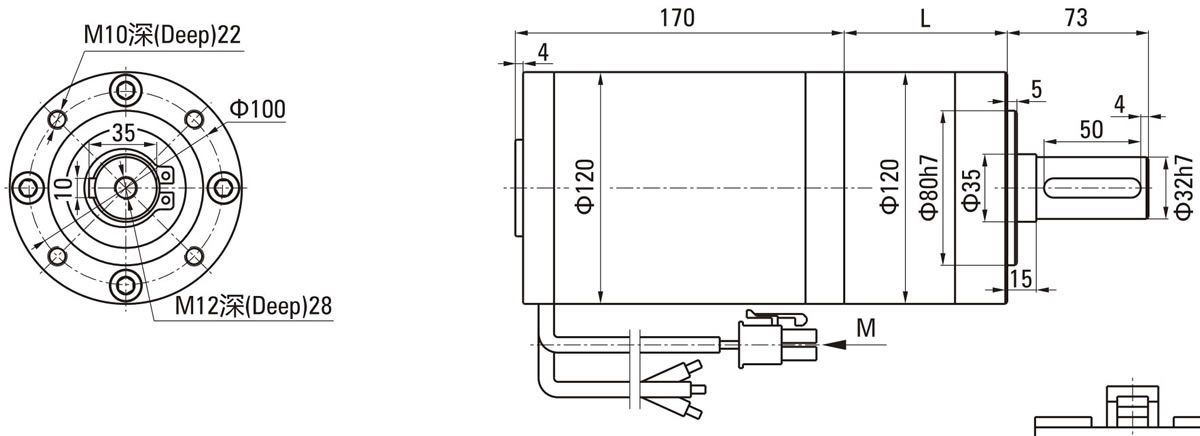

Motor Specifications
Motor Model Gearbox Model Gear Ratio Dimension (mm)
Z120BLDPN 120ZPN() Stage 1 3.65～8.63 92.00
Stage 2 14～58 127.0
Stage 3 67～393 162.0
BLDC Motor Technical Data
Motor Model Voltage V Power W No-load Current A No-load Speed RPM Rated Current A Rated Speed RPM Rated Torque N.m Motor Life H
Z120BLDPN24400-30S 24 400 3.0 3500 20.5 3000 1.273 5000
Z120BLDPN48750-30S 48 750 2.5 3600 18.5 3000 2.388 5000
Z120BLDPN48900-30S 48 900 2.5 3700 23.5 3000 2.865 5000
BLDC Planetary Gear Motor Technical Data
Gear Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output Shaft Speed r/min 822 560 458 348 222 159 122 107 89 67 52 45 37
Allowance Torque N.m 7.84 11.52 14.07 18.54 26.17 36.59 47.67 54.25 65.60 86.42 112.59 116.91 141.36
Reduction Stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Gear Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output Shaft Speed r/min 33 29 25 24 21 18 16 13 9.9 7.6
Allowance Torque N.m 159.23 179.31 207.37 222.63 253.34 288.69 300.00 300.00 300.00 300.00
Reduction Stage 3 3 3 3 3 3 3 3 3 3
Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
Other Products

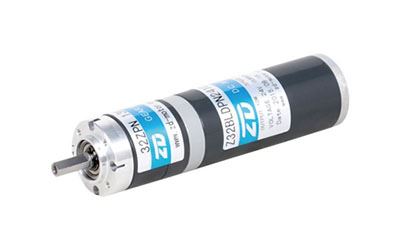

32mm 25W Brushless DC Planetary Gear Motor 32mm 25W Brushless DC Planetary Gear Motor

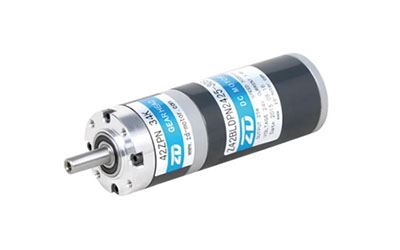

42mm 40W Brushless DC Planetary Gear Motor 42mm 40W Brushless DC Planetary Gear Motor

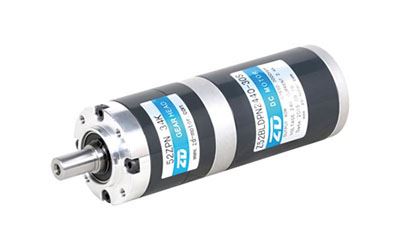

52mm 40W Brushless DC Planetary Gear Motor 52mm 40W Brushless DC Planetary Gear Motor

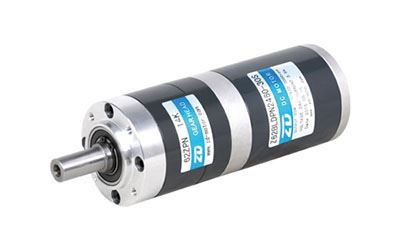

62mm 60W Brushless DC Planetary Gear Motor 62mm 60W Brushless DC Planetary Gear Motor

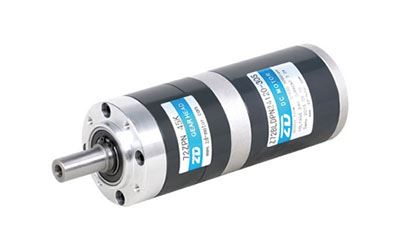

72mm 120W Brushless DC Planetary Gear Motor 72mm 120W Brushless DC Planetary Gear Motor

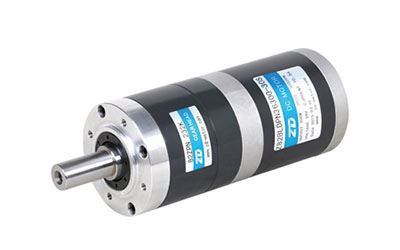

82mm 300W Brushless DC Planetary Gear Motor 82mm 300W Brushless DC Planetary Gear Motor

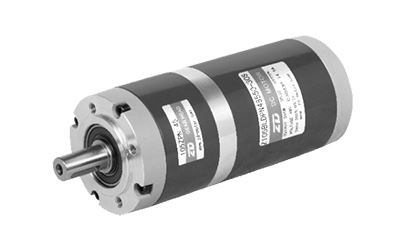

105mm 350W/550W/750W Brushless DC Planetary Gear Motor 105mm 350W/550W/750W Brushless DC Planetary Gear Motor

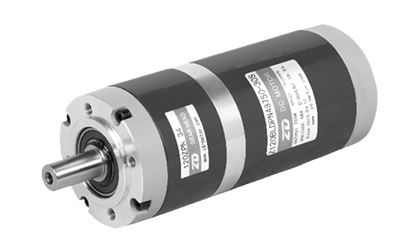

120mm 400W/750W/900W Brushless DC Planetary Gear Motor 120mm 400W/750W/900W Brushless DC Planetary Gear Motor
