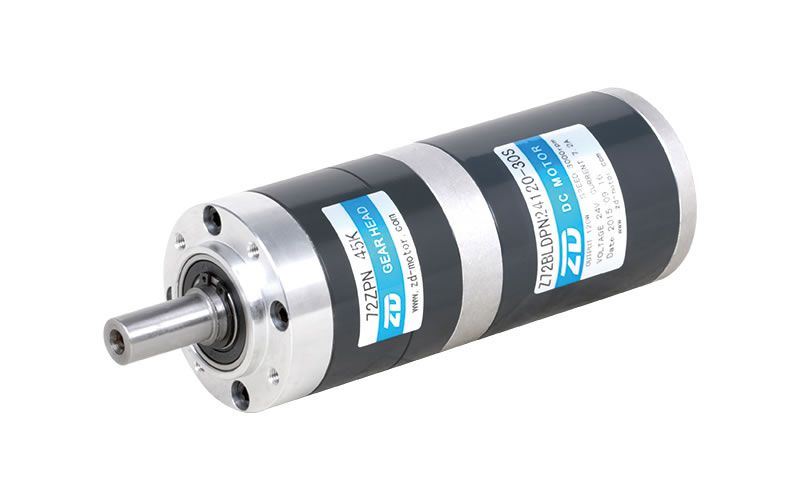

72mm 120W Brushless DC Planetary Gear Motor

72mm 120W Brushless DC Planetary Gear Motor

Request a Quote PDF Download

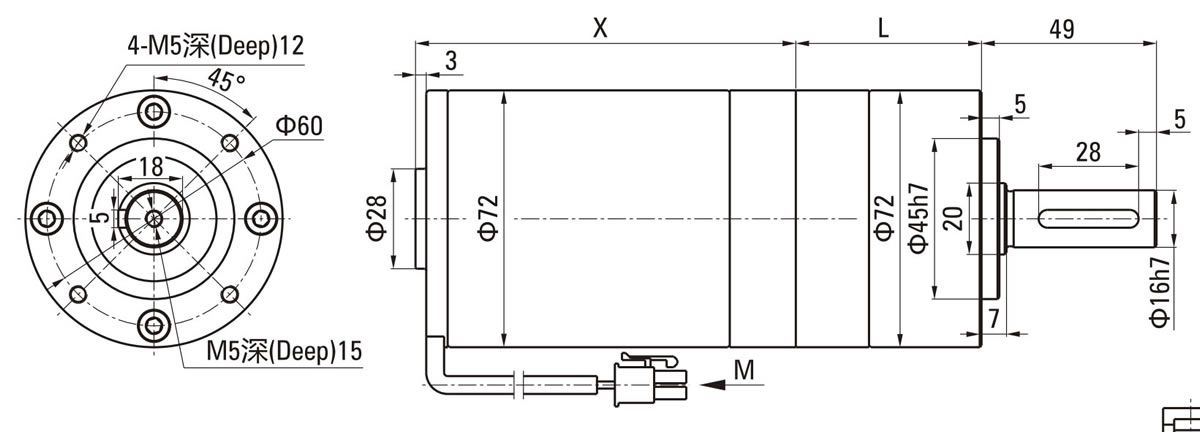

Motor Specifications
Motor Model Dimension mm Gearbox Model Gear Ratio Dimension (mm)
Z72BLDPN24120-30S 106.5 72PN() 3.65～8.63 52.0
13.53～58.22 72.15
Z72BLDPN24150-30S 129.5
67.08～392.98 92.3
BLDC Motor Technical Data
Motor Model Voltage V Rated Power W Rated Current A Rated Speed RPM Rated Torque N.m IP Ratings
Z72BLDPN24120-30S 24 120 6.6 3000 0.382 20
Z72BLDPN24150-30S 24 150 8.5 3000 0.478 20
BLDC Planetary Gear Motor Technical Data
Gear Ratio 3.65 5.36 6.55 8.63 13.53 18.92 24.65 28.05 33.92 44.69 58.22 67.08 81.11
Output Shaft Speed r/min 822 560 458 348 222 159 122 107 88 67 52 45 37
Allowance Torque N.m 1.25 1.84 2.25 2.97 4.19 5.85 7.63 8.68 10.50 13.83 18.01 18.71 22.62
Reduction Stage 1 1 1 1 2 2 2 2 2 2 2 3 3
Gear Ratio 91.36 102.88 118.98 127.74 145.36 165.64 191.56 231.61 301.68 392.98
Output Shaft Speed r/min 33 29 25 23 21 18 16 13 10 8
Allowance Torque N.m 25.48 28.69 33.18 35.62 40.50 46.19 53.42 64.59 84.00 84.00
Reduction Stage 3 3 3 3 3 3 3 3 3 3
Specifications
Applications
  • Cleaning Robotics Autonomous sweeping robots.
  • Logistics Robotics Automated Guided Vehicles (AGVs) for warehouse automation and CPU transport.
  • Food Industry Pizza baking ovens.
  • Digital Warehousing Intelligent AGV systems and storage solutions.
